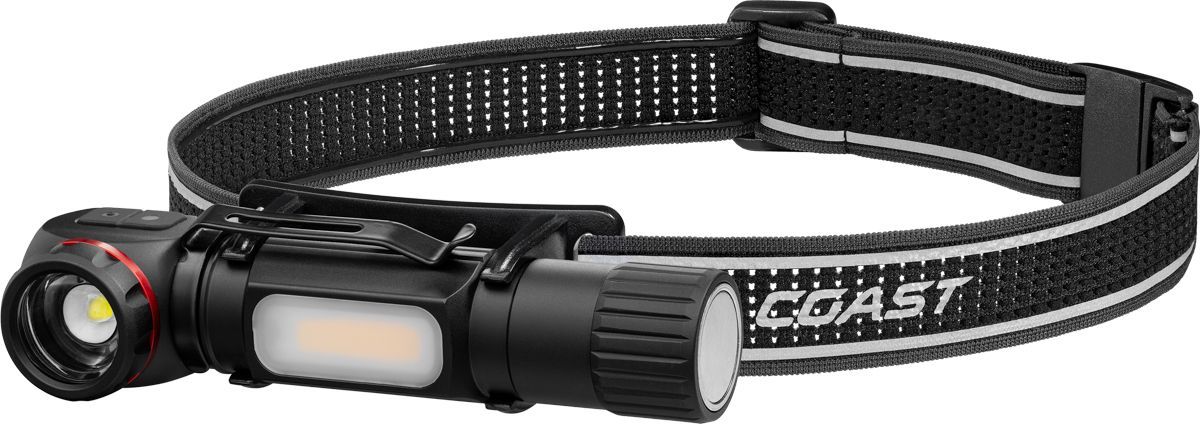

COAST TXM55R Rechargeable Headlamp – 1500 Lumens

The COAST TXM55R is the flagship model in the industrial TXM series – designed for demanding work environments where precision and reliability are essential. With a rugged aluminum housing, magnetic base, tiltable light head, and powerful performance, it is ideal for scaffolding, tunnels, technical shafts, and night work.

COAST TXM55R Headlamp

Industrial grade headlamp featuring Area Light, red light, and up to 1500 lumens of brightness.

The COAST TXM55R is the flagship model of the TXM series, developed for demanding industrial and professional environments where precision, durability, and reliability are essential. Its sturdy aluminum body, magnetic base, adjustable head, and powerful illumination make it the perfect choice for scaffolding, tunnels, inspections, and night work.

Lighting Technology

Equipped with patented Pure Beam Optics and Twist Focus technology, providing a wide, smoothly adjustable beam.

• Ultra View Flood delivers a broad, uniform light pattern.
• BULLSEYE Spot produces a focused and powerful beam for long-range visibility.

Light Modes

The TXM55R features 8 lighting modes, including:

• Low, Medium, High, Moon Glow, and Turbo Mode (boost mode, up to 40 s)
• Area Light (high / low)
• RED Area (red light)

The Quick Cycle function allows easy one-handed mode switching.
The side-mounted CRI90 Area Light provides excellent color rendering for close-up work, while the RED Area light reduces glare and preserves night vision.

Design and Comfort

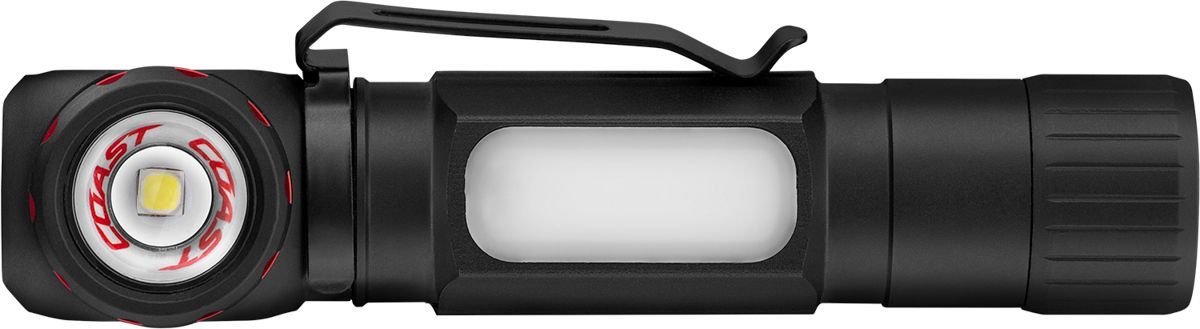

The angled light head uses a Snap in/Snap out system and can be tilted forward or detached for handheld use.
Comes with an Ultra Strap headband with reflective elements and an adhesive helmet mount.
A pocket clip is also included.

Power and Charging

Part of the COAST Rechargeable Plus system.
Operates with either:

• ZITHION X ZX850 rechargeable battery (included), or
• 2 × CR123 lithium batteries (optional)

Charging via USB-C (Pro Tek port). The LED indicator shows battery status.

Durability

• IP54 rating, dust and splash resistant for heavy duty use
• Tested to ANSI FL1 standards

Technical Specifications

Feature	Value
Weight	115 g
EAN	015286314154
Power Source	COAST ZITHION X ZX850 / 2 × CR123 lithium batteries
Light Output (lumens)	300 / 600 / 110 / 20 / 1500 / (400 / 180)
Runtime	7 h 30 min / 4 h 15 min / 12 h / 73 h / 40 s / (3 h 45 min / 7 h)
Beam Distance (m)	90 / 130 / 56 / 23 / 212 / (24 / 16)
Waterproof Rating	IP54
Color Rendering (CRI)	90
Modes	Medium / High / Low / Moon Glow / Turbo / (Area High/Low) / Red
Included Accessories	ZX850 Zithion X battery, USB C cable, adhesive helmet mount, pocket clip
Product Type	Headlamp
