Axixtech CR06-W led directional warning light, Wide angle

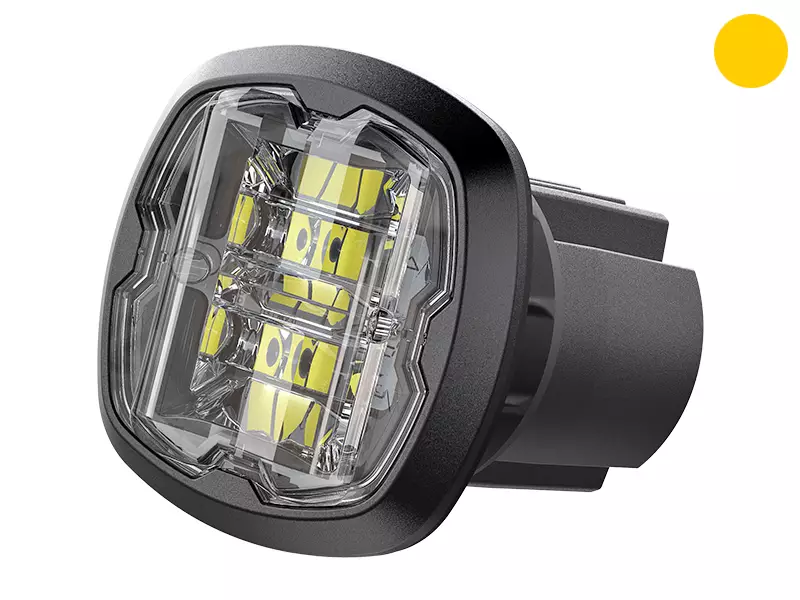

Axixtech CR06-W wide angle LED beacon.

Axixtech Crown series Wide Angle. The unique optical system with six power LEDs provides a wide lighting angle. Four lights together provide a 270° illumination meeting the ECE R65 Cat. HT Class 1 standard (see the last product image). A single light produces a 120° illumination angle meeting the SAE J845 Class 1 standard. Features Pop-n-Lock quick mounting, built-in cruise mode with continuous light, and a compact design that requires no separate controllers, making installation easy. Supports synchronized simultaneous or alternating flashes for up to 20 units, includes reverse polarity protection, and is weather-resistant and vibration-proof.

Available colors:

• Amber / yellow
• Blue

Technical specifications:

• Dimensions: 36.60 x 36.60 x 40.25mm
• Weight: 58g (net 58g)
• Power LEDs: 6 pcs
• 17 flash patterns
• Type: CR06-W
• Voltage: 12/24V
• Power: 10W
• Color: Yellow
• Shape: Square
• IP rating: IPX7
• Approvals: ECE R65, ECE R10, SAE J595 Cl. 1, SAE J845 Cl. 1
