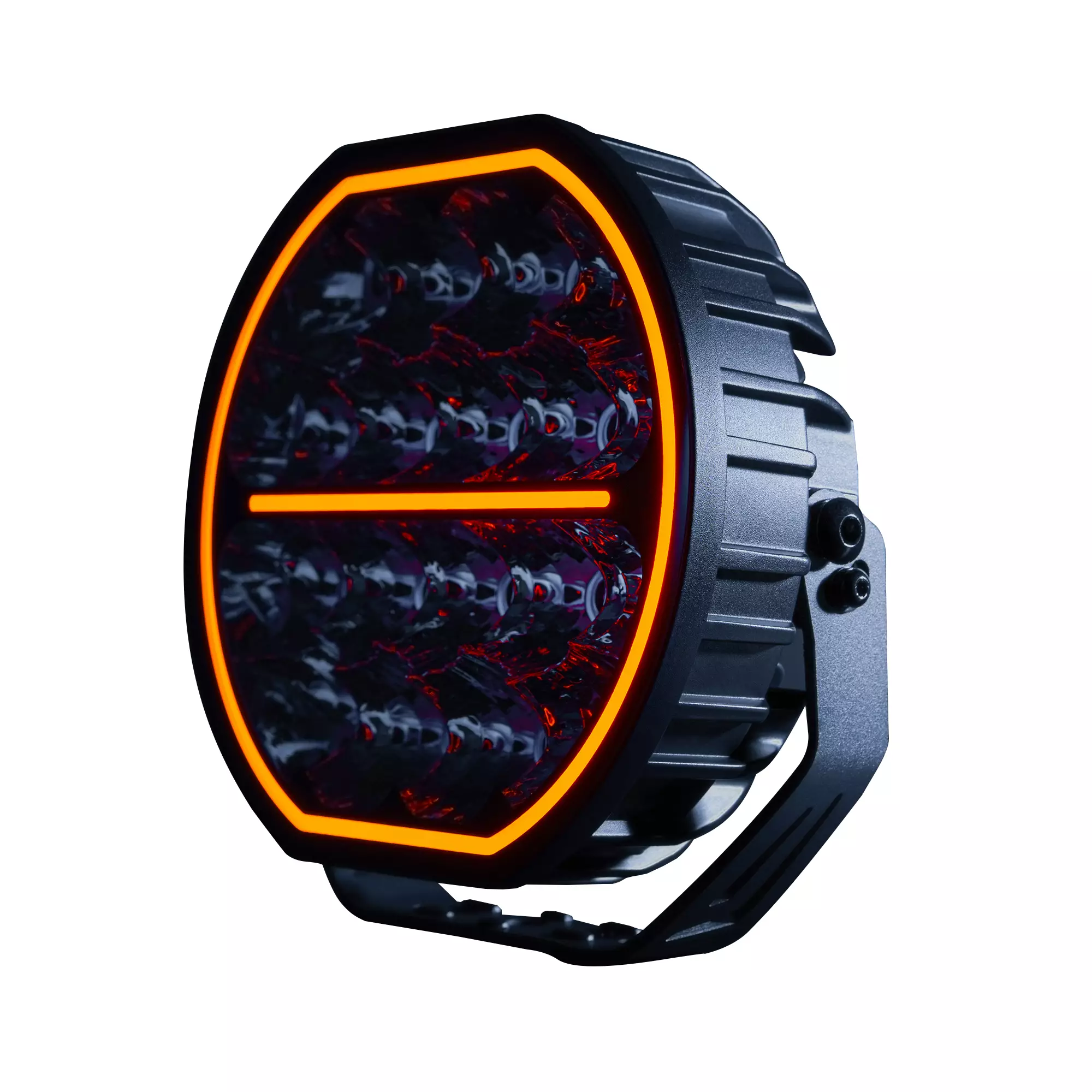

Strands Big Energy 9" LED-auxiliary light

Strands Big Energy V2 9? ? powerful LED driving light with 12,900 lumens

Strands Big Energy V2 9? is the next generation of the popular Big Energy driving light. Delivering up to 12,900 lumens, a beam range of 700 metres @ 1 lux and two power modes, it is a powerful and modern 9-inch LED driving light designed for demanding driving conditions.

The updated V2 combines impressive performance with a slim design, white or amber position light and a carefully engineered beam pattern providing excellent long-range visibility while still illuminating roadsides and ditches.

Two power modes ? up to 12,900 lumens

Xperience Mode unlocks the full performance of the driving light, delivering a manufacturer-rated 132 W and up to 12,900 lumens. Beam range reaches 700 metres @ 1 lux and an impressive 1,400 metres @ 0.25 lux.

E-approved mode is designed for use on public roads and has a reference number of 20.

Long-range and effective beam pattern

The carefully engineered reflectors create a long and concentrated beam while providing useful peripheral illumination towards roadsides and ditches.

The result is a well-balanced LED driving light that effectively complements your vehicle's original high beams and improves visibility when driving in darkness.

Impressive range with multiple driving lights

• 1 driving light: 700 m @ 1 lux

• 2 driving lights: 990 m @ 1 lux

• 3 driving lights: 1,212 m @ 1 lux

• 4 driving lights: 1,400 m @ 1 lux

With a depth of only 79.2 mm, the slim Big Energy V2 is particularly suitable for installations using several 9-inch driving lights.

Available individually or as a complete driving light kit

Strands Big Energy V2 is available individually or as a complete kit with 2, 3 or 4 driving lights.

The complete kits include a driving light bracket for EU licence plates, an HD 12V relay wiring harness with DT-4 connectors and stabilising support bars.

Contents ? 1 pc

• 1 pc Strands Big Energy V2 9"

• 1 pc power cable with DT4 connector, 550 mm

• 1 pc anti-vibration pad

• 1 pc mounting bracket

Contents ? 2 pcs complete kit

• 2 pcs Strands Big Energy V2 9"

• 1 pc driving light bracket for EU licence plate

• 1 pc HD 12V relay wiring harness, DT-4

• 2 pcs stabilising support bars

Contents ? 3 pcs complete kit

• 3 pcs Strands Big Energy V2 9"

• 1 pc driving light bracket for EU licence plate

• 1 pc HD 12V relay wiring harness, DT-4

• 3 pcs stabilising support bars

Contents ? 4 pcs complete kit

• 4 pcs Strands Big Energy V2 9"

• 1 pc driving light bracket for EU licence plate

• 2 pcs HD 12V relay wiring harnesses, DT-4

• 4 pcs stabilising support bars

White or amber position light

Strands Big Energy V2 features an integrated position light that can be connected as either white or amber. This gives your vehicle a modern and distinctive appearance while allowing the lighting setup to match the style of your vehicle.

Slim and durable construction

The housing is manufactured from durable aluminium and features a frameless polycarbonate lens.

With an IP69K rating, the driving light is designed to withstand water, dust and dirt. Its operating temperature of -40°C to +60°C makes Big Energy V2 suitable for demanding Nordic conditions throughout the year.

Easy installation with Deutsch DT4

The integrated Deutsch DT4 connector simplifies installation. Big Energy V2 is EMC approved according to ECE R10 and also complies with ECE R148 and R149.

Why choose Strands Big Energy V2 9??

• Powerful 9? LED driving light

• Up to 12,900 lumens

• 700 metres @ 1 lux

• 1,400 metres @ 0.25 lux

• Xperience Mode for maximum performance

• E-approved mode, Ref. 20

• Long-range and effective beam pattern

• White or amber position light

• Slim 79.2 mm depth

• Deutsch DT4 connector

• IP69K rated

• ECE R10, R148 and R149

• Available individually or as complete 2-, 3- and 4-light kits

• 36-month warranty

Technical specifications

Brand and model: Strands Big Energy V2 9?
Product type: LED driving light
Operating voltage: 10?32 V
Reference number: 20
Nominal power: 140 W
Xperience Mode: 132 W
E-approved mode: 14 W
White/amber position light: 8 W
Current consumption: 11 A @ 12 V / 5.5 A @ 24 V
Light output: 12,900 lumens in Xperience Mode
Beam range: 700 m @ 1 lux / 1,400 m @ 0.25 lux
Colour temperature: 5700 K
Connector: Deutsch DT4
Cable length: 550 mm
Dimensions: 215.8 × 197.8 × 79.2 mm
Height including bracket: 220.4 mm
Weight: 2,690 g
IP rating: IP69K
Operating temperature: -40°C to +60°C
Approvals: ECE R10, R148, R149
Warranty: 36 months

Wiring

Red: Power (+)
Black: Ground (-)
Yellow: Amber position light
White: White position light
Xperience Mode: DT4 connector
E-approved mode: DT4 connector + green wire

Strands Big Energy V2 9? combines 12,900 lumens, 700 metres of range @ 1 lux, two power modes and white or amber position light. Choose a single driving light or a complete 2-, 3- or 4-light kit for a powerful upgrade to your vehicle's high beams.
