Nordic Lights Work Light Kit, Wheel loader

Nordic Lights work light kit is specifically designed for wheeled excavators. Nordic Lights LED work lights belong to the Premium class by default, regardless of the model. In this package, you can choose between the more affordable Basic set and the Professional set. Both options are intended for professional use, ensuring the highest standards of functionality and durability. The work lights in both sets have been tested and optimized for strategic positions on wheeled excavators.

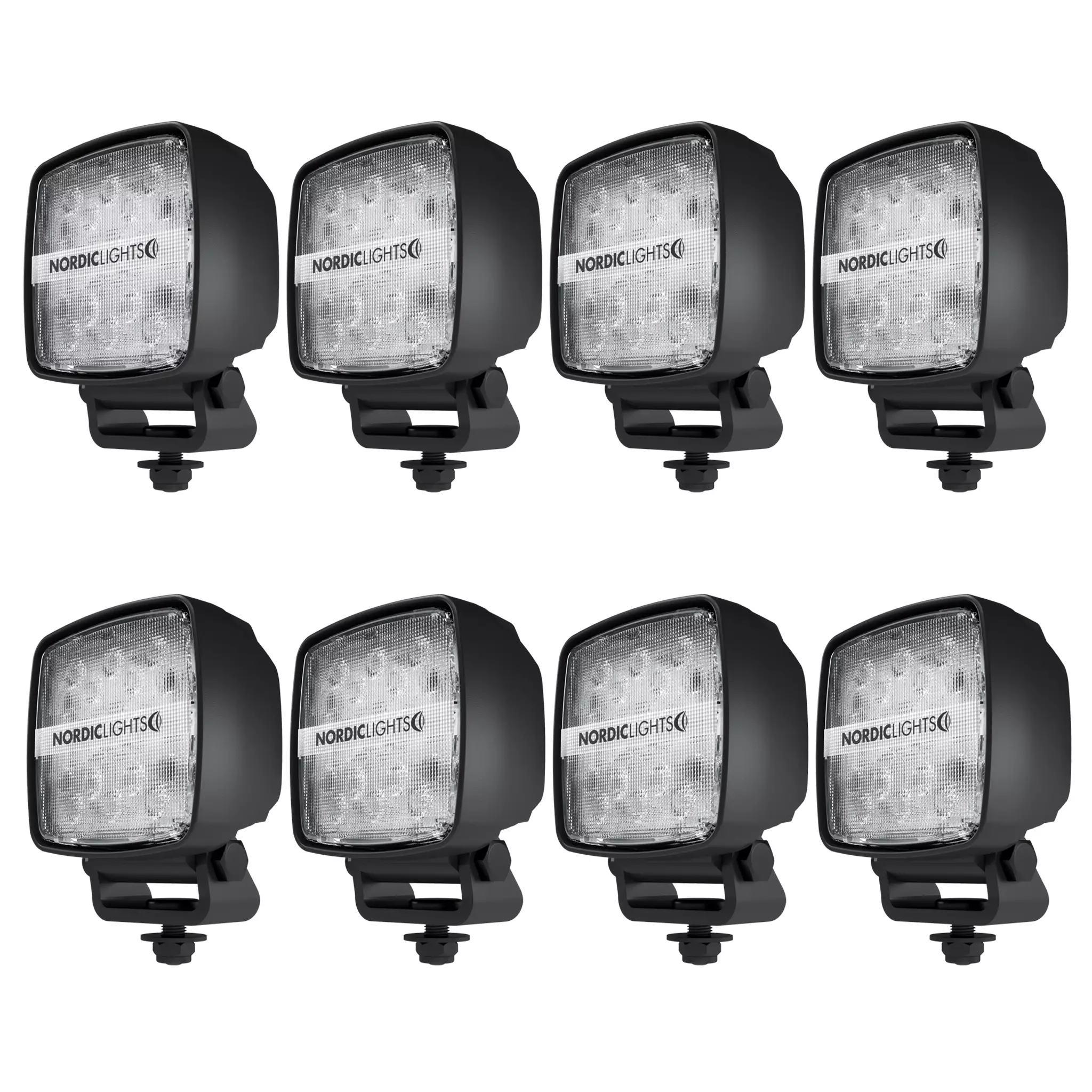

Basic set includes:

• 8x Nordic Lights KL1401 LED work light

Professional set includes:

• 8x Nordic Lights Scorpius Pro 445 LED work light (wide light pattern)
• 2x Nordic Lights Scorpius Pro 415 PH LED work light

Below are the technical specifications for each work light:

Nordic Lights KL1401 (Basic set):

• Nominal operating voltage: 12-24V
• Actual input voltage: 9-16V, 19-32V
• Power: 42W
• Wide light pattern
• Theoretical luminous flux: 3200lm
• Measured luminous flux: 2150lm
• Color temperature: 5700K
• Current consumption: 12V - 3.5A / 24V - 1.7A
• Built-in Deutsch DT-2 connector
• Shock resistance: 60G
• Vibration resistance: 8Grms 24-2000Hz
• Polycarbonate lens
• Aluminum body
• Dimensions: 110 x 110 x 74mm, height with bracket 137mm
• Weight: 0.9kg
• IP rating: IP68, IP6K9K
• EMC: CISPR 25 Class 5, EN 12895, ISO 13766, ISO 14982, ISO 7637-2
• Salt spray test: ISO 9227 240H
• Operating temperature: -40°C... +85°C (overheat protected)
• Warranty: 60 months

Nordic Lights Scorpius Pro 445 (Professional set):

• Nominal operating voltage: 12-24V
• Actual input voltage: 9-32V
• Power: 50W
• Theoretical luminous flux: 7000lm
• Measured luminous flux: 4400lm
• Color temperature: 5000K
• Current consumption: 12V - 4.2A / 24V - 2.1A
• Built-in Deutsch DT-2 connector
• Shock resistance: 60G
• Vibration resistance: 15.3Grms 24-2000Hz
• Lens: Grilamid®
• Aluminum body
• Dimensions: 108 x 108 x 87mm, height with bracket 137mm
• Weight: 1.1kg
• IP rating: IP68, IP6K9K, SAE J1455
• EMC: CISPR 25 Class 5, ISO 13766, ISO 14982, ISO 7637-2
• Salt spray test: ISO 9227 240H
• Operating temperature: -40°C... +85°C (overheat protected)
• Warranty: 60 months

Nordic Lights Scorpius PRO 415 Phenom Optics (Professional set):

• Nominal operating voltage: 12-24V
• Actual input voltage: 9-16V, 18-32V
• Power: 28W
• Extremely wide light pattern
• Theoretical luminous flux: 1950lm
• Measured luminous flux: 1500lm
• Color temperature: 5000K
• Current consumption: 12V - 2.4A / 24V - 1.2A
• Built-in Deutsch DT-2 connector
• Shock resistance: 60G
• Vibration resistance: 8Grms 24-2000Hz
• Lens: Glass
• Aluminum body
• Dimensions: 100 x 100 x 86mm, height with bracket 129mm
• Weight: 0.6kg
• IP rating: IP68, IP6K9K
• EMC: CISPR 25 Class 5, EN 14982-2, ISO 13766, EN 12895, ISO 11452-2, EN 13309, ISO 7637-2
• Salt spray test: ISO 9227 240H
• Operating temperature: -40°C... +85°C (overheat protected)
• Warranty: 60 months
