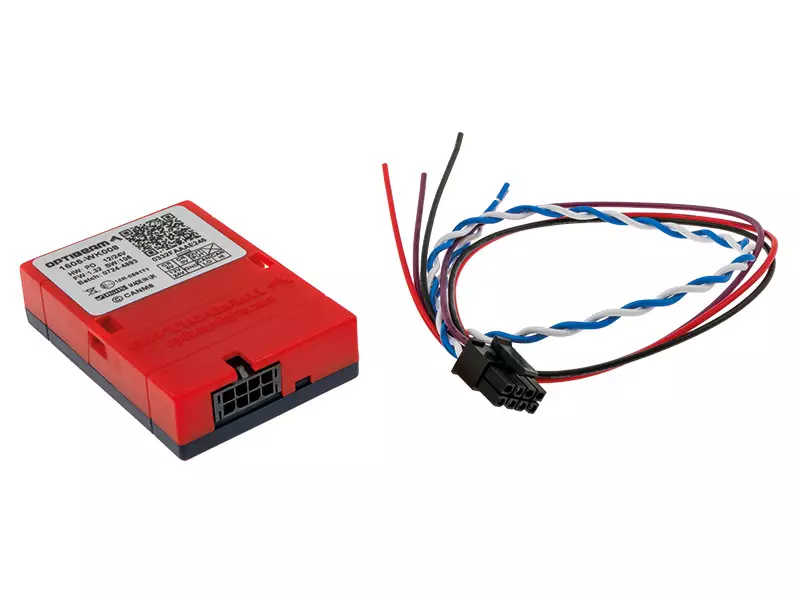

CAN-bus auxiliary light control interface / relay, Cannect Optibeam

CAN-bus auxiliary light control interface / relay, Cannect Optibeam. This control interface is the most reliable way for installing auxiliary lights when other relays are not compatible / don't work with the vehicle in question. This device / relay is installed directly in to vehicle's CAN-bus so we recommend leaving to installation to a professional mechanic. It is preferred that installation work comes with a warranty. It is also good to check the correct wires from vehicle importer. Do note, that installation may affect vehicle's warranty.

Cannect control interface is also available with Hall -sensor which enables installation without cutting or soldering wires as Hall -sensor reads the signal on top of the wire.

Note. For installing auxiliary lights you still need a regular relay wire set as this control interface is only a source for reliable control information for a regular relay set.

LED indicator signals

- Blinking red light: analyzing CAN-bus data
- Continuos red light: CAN-bus data analyzed, but vehicle couldn't be identified
- Continuos green light: CAN-bus data analyzed and vehicle detected

Wire coding

White - CAN Hi (high beam)
Blue - CAN Lo (low beam)
Black - Ground
Red - Positive (continuos 12 VDC)
Purple - Control information for relay

We are not liable for possible damage caused by incorrect installation or any void warranty caused by installation

Compatibility list at the moment

Audi

A3 2005 -
A3 2013 -
A4 2007 -
A5 2007 -
S5 2007 -
A6 2004 -
A6 2011 -
A8 (4H) 2010 -
Q5 2009 -
Q7 2006 -
R8 2007 -
TT 2007 -

BMW

1 Series (E87) 2004 -
1 Series (F20) 2011 -
2 Series (F45) 2014 -
3 Series (E90/E91/E92/E93) 2005 -
3 Series (F30) 2012 -
4 Series (F32/F33) 2013 -
5 Series (E60/E61) 2003 -
5 Series (F10/F11) 2010 -
6 Series (E63/E64) 2004 -
6 Series (F12/F13) 2011 -
7 Series (E65) 2004 -
7 Series (F01/F02) 2008 -
i3 2014 -
X1 (E84) 2009 -
X1 (F48) 2015 -
X3 (F25) 2011 -
X5 (E70) 2007 -
X5 (F15) 2013 -
X6 (E71) 2008 -
Z4 (E89) 2009 -

Citroen

Berlingo 2008 -
C4 2006 -
C4 2010 -
C5 2008 -
C-Crosser 2007 -
DS3 2010 -
DS4 2011 -
DS5 2010 -


Fiat

Ducato Euro 4
Ducato Euro 5

Ford

C-Max 2011 -
Fiesta 2013 -
Focus 2005 -
Focus 2011 -
Galaxy 2016 >
Kuga 2013 -
Mondeo 2009 -
Mondeo 2015 -
Ranger 2012 - 2016
Ranger 2016 >
S-Max 2009 -
Transit 2012 -
Transit Connect 2014 -
Transit Custom 2013 -


Honda

CR-V 2012 -


Hyundai

i30 2012 -
Kona 2017 -


Jeep

Cherokee Latitude 2015 -


Kia
