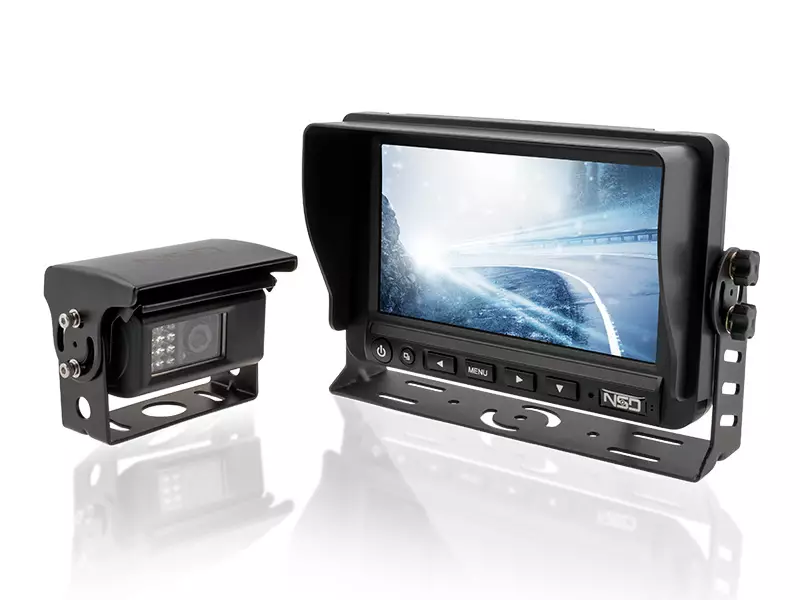

Full HD Reversing camera kit with shutter cam 7", NSD

Full HD 1080P IPS digital reversing camera kit with a 7" display, NSD. The kit includes a monitor and one motorized shutter camera, as well as a 15 m cable for connecting the camera to the monitor. Suitable for installation in systems with an operating voltage of 12?32 V.

For the first time in this price range, the camera kit features Full HD high-definition resolution, the ability to connect up to 2 (motorized shutter) cameras, and nitrogen-filled camera lenses!

Note: The kit includes a 15 m cable as standard. 3 m, 10 m, and 20 m cables are also available as optional accessories.

Monitor:

• Full HD 1080P IPS display, 7"

• Resolution: 1920 × 1080 px

• Contrast ratio: 800:1

• Brightness: 600 cd/m²

• Supports connection of up to 2 (motorized shutter) cameras

• Single-image display (one camera image shown at a time)

• Viewing angle (all directions): 85°

• Response time: 25 ms

• Operating voltage: 12?32 VDC (monitor)

• Dimensions: 225 × 150 × 85 mm

• U-bracket and sun visor included

• Operating temperature: -20 °C ? +70 °C

• Parking guidelines for reversing

Color Camera:

• 1080P Full HD 1/2.8" CMOS color sensor

• Resolution: 1920 × 1080 px

• Minimum illumination: 0.1 lux; automatic infrared LEDs

• Automatic day/night switching

• 3.6 mm lens / 110° viewing angle

• Shock resistance: 5G

• Operating temperature: -20 °C ? +60 °C, RH max. 95%

• Anti-fog feature, nitrogen-filled

• IR-CUT filter for improved color separation

• Signal-to-noise ratio: ? 48 dB (AGC off)

• Width: 107 mm

• Height: 71 mm

• Depth: 75 mm

• Weight: 300 g

• IP69K protection rating

The kit comes with a 12-month warranty.
