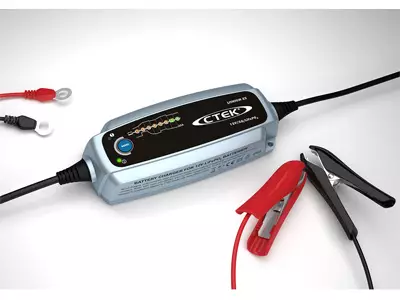

CTEK XS Lithium 5A 12V

CTEK XS Lithium 5A 12V, is an advanced microprocessor-controlled charger designed specifically for charging and maintaining lithium iron phosphate (LiFePO4) batteries, aiming to increase their performance and lifespan. With a charging current of up to 5A, the Lithium XS is highly versatile, capable of charging 5–60Ah LiFePO4 batteries and maintaining batteries up to 120Ah.

Its operation is straightforward, and charging begins immediately upon connection without the need to remove the battery from the vehicle. When charging starts, the Lithium XS automatically resets all electronic undervoltage protection devices (Battery Management System) installed in the vehicle. Charging can be restarted manually at any time by pressing the Reset button.

The Lithium XS is a fully automatic "connect and forget" charger with eight charging stages, including a testing stage that indicates whether the LiFePO4 battery is charging properly and retaining power. The purpose of this unique stage is to restore the full capacity of the battery, and the patented maintenance charging ensures optimal performance even after months of disuse. Splash- and dust-proof (IP65), the Lithium XS is safe and easy to use, protecting vehicle electronics and featuring spark, reverse polarity, and short-circuit protection. The Lithium XS charger comes with a five-year warranty.

Features:

• 12V
• 5.0A
• Battery and alternator testing
• 8-stage charging
• Maintenance charging
• For 5 - 60Ah Lithium iron phosphate batteries (LiFePO4)
• IP65
• CTEK
• 60-month warranty

Technical specifications:

• Charging voltage: 13.8 / 14.4V DC
• Charging current: 5.0A (Max)
• Input current: 0.65A rms (at full charging current)
• Leakage current: < 1Ah/month
• Ripple: < 4%
• Operating temperature: -20°C – +50°C, output power automatically reduced at high temperatures
• Charger type: 8-stage, fully automatic charging cycle
• Battery types: 12V LiFePO4 batteries
• Battery capacity: 5-60Ah, up to 120Ah for maintenance charging
• Dimensions: 168 x 65 x 38mm (L x W x H)
• IP65
• Weight: 0.6 kg
