CTEK NJORD GO charger 11KW TYPE2
- Product Code: 8020108038
- Warranty: 2 years
- Weight: 3 kg
- Category: 59

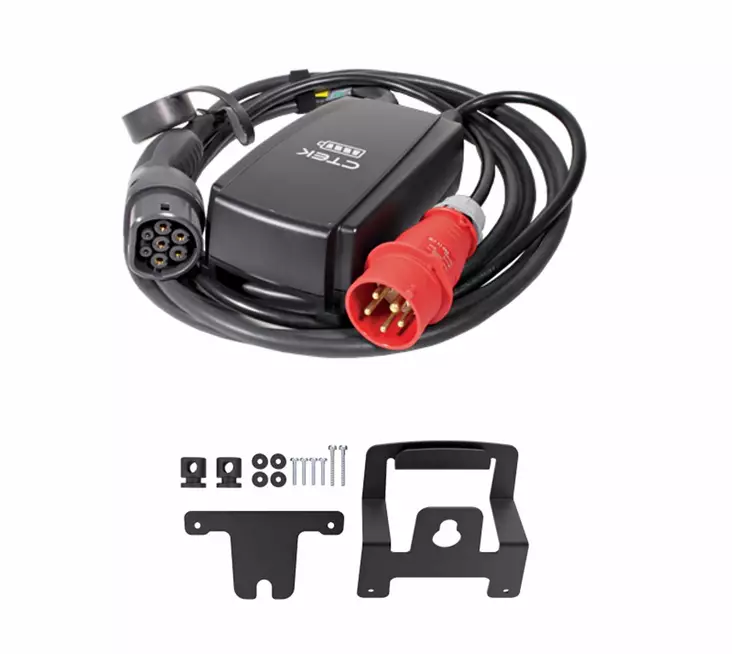

Lockable Wall Mount Bracket Included!
CTEK NJORD® GO is a portable 11 kW charger for electric vehicles. It allows you to charge your electric vehicle quickly and reliably both at home and on the go. With the free CTEK app, you can manage charging and scheduling on your Android or iOS smartphone.
SMART, EASY TO USE, AND PORTABLE The CTEK NJORD® GO is a durable, easily movable, and versatile charging unit for electric vehicles, equipped with a type 2 charging connector and up to 11 kW charging capacity. It comes with a built-in 1.5m power cable and a sturdy 5m charging cable. No additional installations are needed. Simply connect the charger to a readily available CEE three-phase socket, and you're ready to charge. The charger's LED display clearly indicates the charging status. With the free CTEK APP, you can manage charging and scheduling on your Android or iOS smartphone.
The NJORD® GO features advanced convection cooling, allowing for high-power charging even in high-temperature environments.
CTEK APP - TAKE CONTROL OF YOUR ELECTRIC VEHICLE'S CHARGING The charging unit can be controlled via the CTEK APP, which provides additional functions for complete control and monitoring of charging via your mobile phone.
Features
- Cost-effective type 2, 16 A 3-phase charger (11 kW) for electric vehicles
- Supports both BEV and PHEV vehicles
- No additional electrical installations required – simply connect the device to a home or business three-phase CEE socket
- Small, portable device for use in multiple locations
- Durable, impact-resistant housing
- Integrated safety features for safe daily use
- Easy-to-read interface with charging status indicator
- CTEK APP enables control of charging current and schedule via smartphone.
Technical Specifications
- Charging Method Mode 2
- Charger Class AC charging
- Vehicle Connector Type 2
- Grid Connector CEE 16 A / 400 V 5P
- Number of Phases: 3-phase
- Charging Current 6–16 A
- Charging Power 1.4–11 kW
- Moisture 0–95%
- Cooling Free convection
- Ground Fault Detection
- Ground leakage current: 30 mA AC, 6 mA DC
- Energy Meter: Yes, internal
- Mounting: Portable (wall mounting kit available as an accessory), wall mounting (with special kit)
- Housing Dimensions: 140 x 250 x 80 mm
- Housing: Material Plastic, metal Housing
- Color: Blac
- Charging Cable Length 5 m
- Power Cable Length 1.5 m
- Net Weight (unit with cables) approx. 4 kg
- Interface: LED interface
- Connections Wireless Bluetooth® technology, Wi-Fi
- Network Protocol OCPP 1.6
- App Support Smartphone display, CTEK app for Android and iOS devices
- Nominal Frequency, fn 50 Hz
- Nominal Rated Diversity Factor, RDF 1
- Nominal Insulation Voltage Ui 400 V
- Nominal Impulse Withstand Voltage Uimp 4 kV
- Nominal Dynamic Withstand Current Ipk 6 kA
- Nominal Thermal Withstand Current, lcw 6 kA
- Maximum Prospective Short-circuit Current, Icp 6 kA
- Overvoltage Category III
- Degree of Pollution 3
- External Mechanical Impact IK10
- Intended for use in electromagnetic environment compatible environments B
- Operating Temperature and Storage Temperature: -30 ºC – +50 ºC
- Warranty 24 months
TECHNICAL SPECIFICATIONS – RCD
- Nominal Breaking Capacity and Disconnection Capacity, Im 200 A
