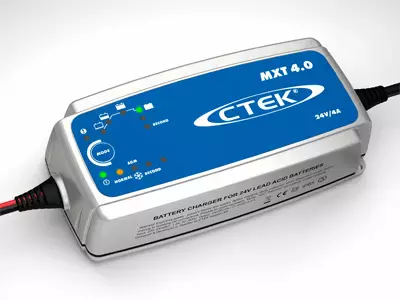

CTEK MXT 4.0 automatic charger 4A 24V
- Product Code: 5002011500
- EAN: 7350009567336
- Warranty: 2 years
- Weight: 1 kg
- Category: 63
CTEK MXT automatic charger 4.0 4A 24V, is a cost-effective charger designed for small 24V batteries. Ideal for environments where large quantities of 24V vehicles, backup systems, slope equipment, and so forth need to be maintained. The MXT 4.0 includes all the necessary features and functions to address various battery-related issues. It provides the following features: battery diagnostics to determine if the battery can accept and retain charge, reconditioning function for deeply discharged and stratified batteries, unique maintenance charging, cold mode for optimized charging in cold winter conditions, and a charging function tailored for demanding AGM batteries (Optima).
The MXT 4.0 is a fully automatic 8-stage charger, capable of charging 8–100Ah 24V batteries at a rate of 4A and suitable for maintenance charging up to 250Ah. The charger has an IP65 protection rating (dust and splash proof) and is compatible with vehicle electronics. It is spark-proof, protected against reverse polarity, and short-circuit protected. The MXT 4.0 charger comes with a 2-year warranty.
Features:
- 24V
- 4A
- 8-stage charging
- Maintenance charging
- For 8-100Ah lead-acid batteries
- Flooded, maintenance-free, AGM, and gel batteries
- IP65
- CTEK
- 24-month warranty
Technical specifications:
- Charging voltage: Normal: 28.8V, *COLD/AGM: 29.4V, *RECOND: 31.4V
- Minimum battery voltage: 2.0V
- Charging current: 4.0A (Max)
- Input current: 1.2A rms (at full charging current)
- Leakage current: < 1Ah/month
- Ripple: < 5%
- Operating temperature: -20°C – +50°C, output power automatically reduced at high temperatures
- Charger type: 8-stage, fully automatic charging cycle
- Battery types: All types of 24-volt lead-acid batteries (Flooded, maintenance-free, AGM, and gel batteries)
- Battery capacity: 8-100Ah, up to 250Ah for maintenance charging
- Dimensions: 191 x 89 x 48mm (L x W x H)
- IP65
- Weight: 0.8 kg
*COLD/AGM: Charging in cold conditions and AGM batteries
*RECOND: Reconditioning of deeply discharged batteries
