360° Camera system
- Product Code: 8020107767
- Warranty: 1 year
- Operating voltage range: 10-32V
- Category: 60

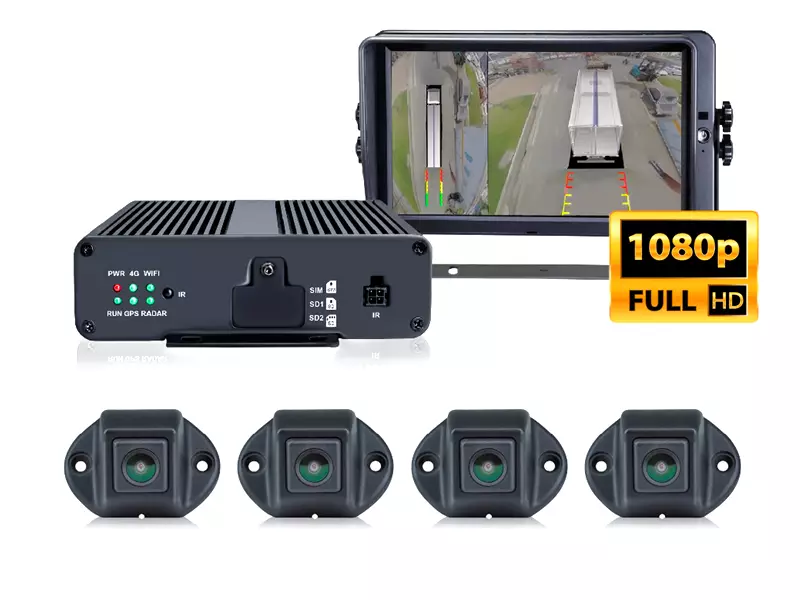

360° camera system offers a true 360° bird's-eye panorama view without blind spots. Utilizing panoramic synthesis, it provides a realistic 3D driving view. The kit includes 4 cameras with cables (20m), a 7" touchscreen display, a control/recording box, cables, and alignment flags (4). Easy installation and time-saving automatic calibration. Specifically designed for transport and emergency vehicles. 1080P full HD video input and output, Real-time image with 150 ms delay. Selectable 3D/2D view, as well as vertical/horizontal display. Recording media: 2 x 128GB SD cards. FCW function without additional cameras and work. 3D technology covers all lanes, making lane changes safer. Operating temperature -20ºC ... +70ºC. Low-light operation: up to < 0.1 lux. Automatic switch to rearview image when reverse gear is engaged. Operating voltage 10-32V.
Technical specifications:
- Sensor: 1/2.9" 2Mega CMOS
- Frame rate: 25/30
- Resolution: 1920 (W) x 1080 (H)
- Pixel size: 2.8 μm x 2.8 μm
- 1080p
- Video output: 1.0Vp-p, 75Ohm
- Automatic white balance
- Viewing angle: > 170° (H)
- Operating temperature range: –20? ~ 70?, RH95%MAX
- Storage temperature range: –30? ~ 80?, RH95%MAX
- IP69K rated for water and dust resistance
