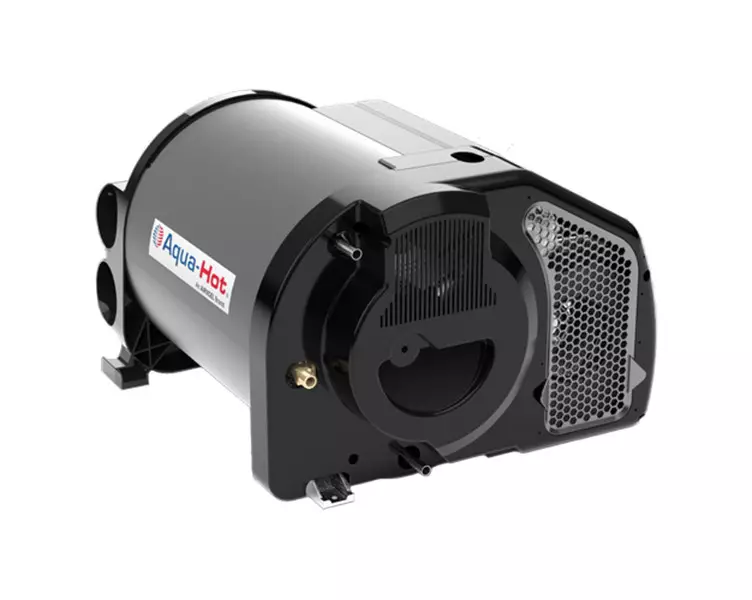

Aqua-Hot GEN1 6 kW Propane/Butane Heating System

The Aqua-Hot Gen 1 P6 E is a compact Forced Air Heating System with 10L Water Heater in an all-in-one unit, fueled by Gas (Propane/Butane) plus Electric Mode, specifically designed for RV vehicles.

This product can heat the water independently of the furnace, allowing you to be comfortable all year round and always be ready to have a hot shower.

The electric mode gives you the possibility to save fuel while you are connected to the 230V shore power.

Specifications:

Open Source: RV-C Ready

Fuel Type: Gas (Propane/Butane)

Power Supply: 12V DC ? 230V AC

Operating Pressure: 30 mbar

Heat Output: 2.000 W / 4.000 W / 6.000 W

Electric Mode Output: 900 W / 1.800 W

Efficiency: 98%

Fuel Consumption: 160 ? 480 g/h

Water Tank: 10 L

Current Draw (12V): Max 5,6 A for a short term (average 1,3 A)

Current Draw (230V): 3,9 ? 7,8 A

Dimensions (LxWxH): 510 x 450 x 300 mm

Weight: 15,6 Kg

Warm Air Flow Rate: Max 287 m3/h

Water Pump Pressure: Max 2,8 bar

System Pressure: Max 4,5 bar

Hot Water Options: 40°C ? 60°C

Low Point Drain: Yes

No Anode Design: Yes

Automated Timer: Yes
