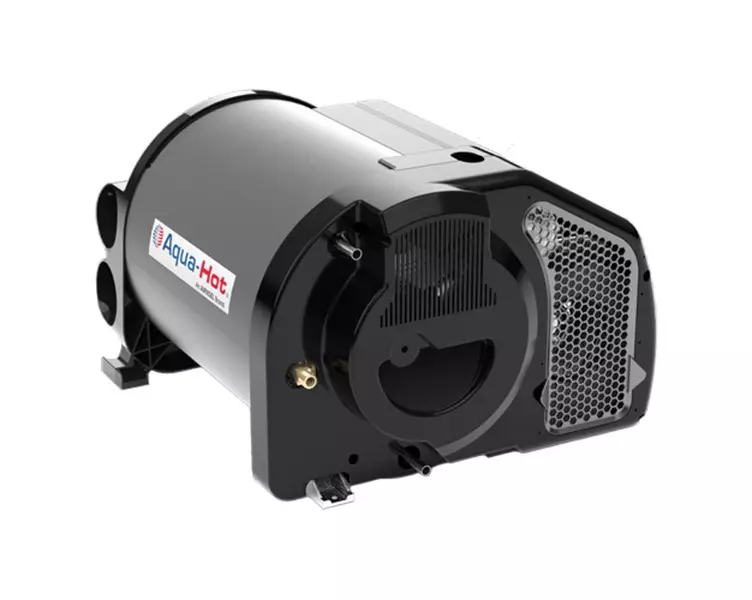

Aqua-Hot GEN1 4 kW Diesel Heating System
- Product Code: 8020108554
- Weight: 6 kg
- Category:
The Aqua-Hot Gen 1 D4 E is a compact Forced Air Heating System with 10L Water Heater in an all-in-one unit, fueled by Diesel plus Electric Mode, specifically designed for RV vehicles.
This product can heat the water independently of the furnace, allowing you to be comfortable all year round and always be ready to have a hot shower.
The electric mode gives you the possibility to save fuel while you are connected to the 230V shore power.
Specifications:
Open Source: RV-C Ready
Fuel Type: Diesel
Power Supply: 12V DC ? 230V AC
Heat Output: 2.000 W / 4.000 W
Electric Mode Output: 900 W / 1.800 W
Efficiency: 91%
Fuel Consumption: 0,28 ? 0,65 l/h
Water Tank: 10 L ? Stainless steel
Current Draw (12V): 1,8 ? 4,0 A
Current Draw (230V): 3,9 ? 7,8 A
Dimensions (LxWxH): 510 x 450 x 300 mm
Weight: 15,6 Kg
Warm Air Flow Rate: Max 287 m3/h
Water Pump Pressure: Max 2,8 bar
System Pressure: Max 4,5 bar
Hot Water Options: 40°C ? 60°C
High Altitude Ready: Up to 5.000 m
Low Point Drain: Yes
No Anode Design: Yes
Automated Timer: Yes
Oil Pre-Pump Mode: Yes
