W-LIGHT SURGE SUPER SLIM 20 Led bar

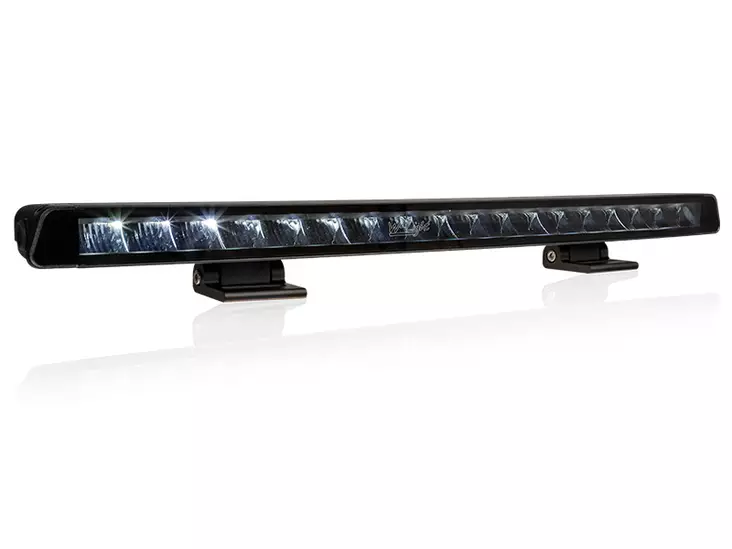

W-Light Surge Super Slim 20” – Slim Power and Dual Color Style

W-Light Surge Super Slim 20” brings together refined design, impressive performance, and dual-color position lights in one sleek package. At only 33 mm tall, this LED bar delivers 8,300 actual lumens and a beam reaching up to 508 meters in Double-Up mode. Choose between white and amber position lights for a distinctive and stylish look, both day and night.

Key Features

• Dual position light: Select white or amber – beautifully illuminating the full front lens.
• Double-Up technology: Adjustable light output for both road and off-road use.
• Balanced beam pattern: Smooth, long light distribution for maximum visibility.
• Ultra-slim profile: Only 33 mm tall – fits seamlessly into grills or bumpers.
• Built for harsh climates: Aluminum housing, polycarbonate lens, IP68/IP69K durability.
• Easy installation: 4-pin DT connector and 2.2 m cable.
• ECE approved: R148, R149, R10 certified.

Technical Specifications

• Voltage: 9–36 V
• Luminous flux: 9,200 lm (theoretical) / 8,300 lm (measured)
• Range: 373 m / 508 m (Double-Up)
• Position light: White / Amber
• Color temperature: 5,000 K
• Reference number: 30
• Power draw: 8.97 A @ 13.7 V
• LED count: 18 pcs
• Dimensions (L x H x D): 538 x 33 (47) x 59 mm
• Weight: 3.0 kg
• Housing: Aluminum
• Lens: Polycarbonate
• IP rating: IP68 / IP69K
• Approvals: ECE R148, R149, R10
• Warranty: 24 months

W-Light Surge Super Slim 20” – sleek, powerful, and made to shine.
