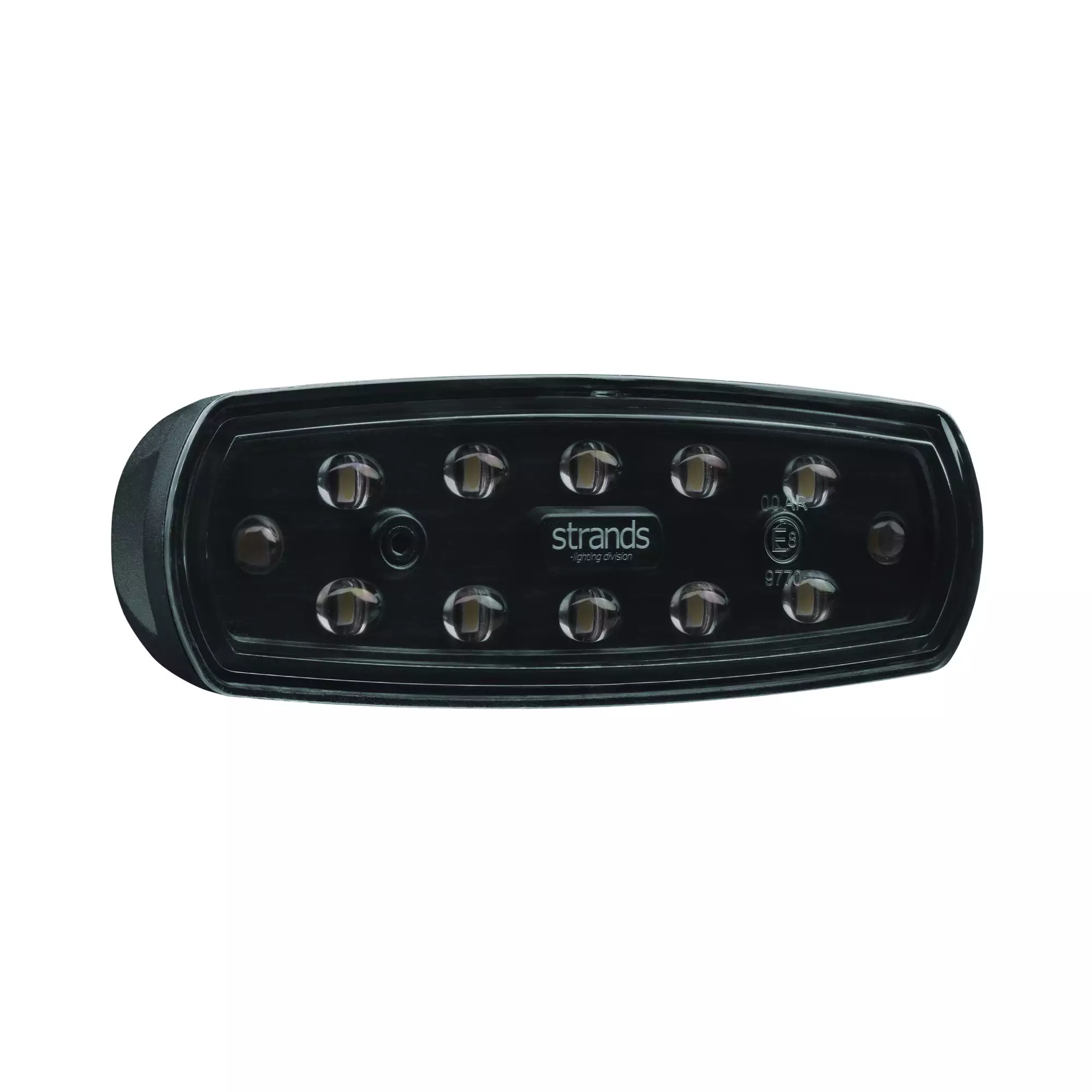

Reverse Light NUUK E-LINE BLACK R 13W
- Product Code: 8020112692
- Category: 606
The Nuuk E-Line Black R is a powerful light that dramatically improves your built-in reversing light. A flood beam with a range of 24 meters and 1350 actual lumens guarantees a clear view of where you’re going. You'll be aware of any obstacles behind you thanks to the wide and long beam. It's a compact light with a discreet dark design that fits any vehicle, only 5 cm high (excluding the bracket). The No-Edge lens gives it a stylish appearance and increased durability. It channels rain away from the lens and protects against dirt and impacts.
E-approved according to R23, it suits all drivers. With a low power consumption of just 13 W, you don’t have to worry about energy use. Installation is easy, and all necessary parts are included in the package.
A reversing light faces tough conditions – weather, dirt, salt, water – that’s why the Nuuk E-Line Black R is IP68/69K rated, guaranteeing long-lasting performance. Strands backs it with a 3-year function warranty.
<
| Specification | Value |
|---|---|
| Voltage (V DC) | 12–36 |
| Theoretical power (W) | 15 |
| Power consumption (W) | 13 |
| Theoretical lumens | 1960 |
| Actual lumens | 1350 |
| 1 LUX @ m | 24 |
| Kelvin | 5000 |
| Beam pattern | Flood beam |
| Connection | DT-2PIN |
| Cable length (mm) | 300 |
| Housing color | Black |
| Lens color | Clear |
| LED color | White |
| Bracket material | Stainless steel |
| Housing material | Aluminium |
| Lens material | Polycarbonate |
| Length (mm) | 144 |
| Depth (mm) | 72 |
| Height (mm) | 50 |
| Height including bracket (mm) | 89 |
| IP rating | 68/69K |
| Operating temperature (°C) | -40 to +60 |
| E-approved | Yes |
| Regulation | R23 |
| EMC | R10 |
| Black cable | - (Negative) |
| Red cable | + (Positive) |
