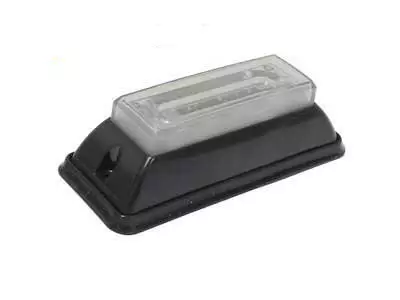

Axixtech Extreme 4-LED directional warning lamp 12 / 24V



Axixtech Extreme 4-LED directional warning lamp is an ALL-IN-ONE LED module designed for various applications and market demands. The Axixtech 4 LED Lighthead is a self-contained HIGH POWER LED, its low profile design and heavy-duty robust structural design means that it can be mounted virtually anywhere. Lighthead is vibration, moisture and corrosion resistant.
Specification:
• High-Intensity 1W LED x 4
• Operating voltage 11-30V DC
• 11 built-in, optional flash patterns
• Non-volatile memory recalls last flash pattern used at power up
• Random flash function, varies flash pattern automatically
• Possibility to synchronize multiple units (over 15) if desired
• Reverse polarity protection
• Color: Yellow, Blue or White
• Clear lens
• Dimensions: 120 x 45 x 35mm
• No separate control unit
• Meets: SAE, Title XIII, e13, E13
• Avg. Current 0.28A @12,8VDC / 0.15A @24VDC (varies with flash pattern)
• Avg. Power 3,6Watts (varies with flash pattern)
• Max. Current 0.56A @12,8VDC / 0.3A @24VDC
• Max. Power 7.2 Watts
• Wires (20cm)
