Lupine SL X Shimano 1800lm Electric bike light
- Product Code: 8020104569
- Warranty: 2 years
- Colour temperature: 6000
- IP class: IP68
- Colour tone: Cool white
- Depth (mm): 48
- Height (mm): 46
- Width (mm): 85
- Measured luminous flux (lm): 1800
- Category: 22
- Sold out

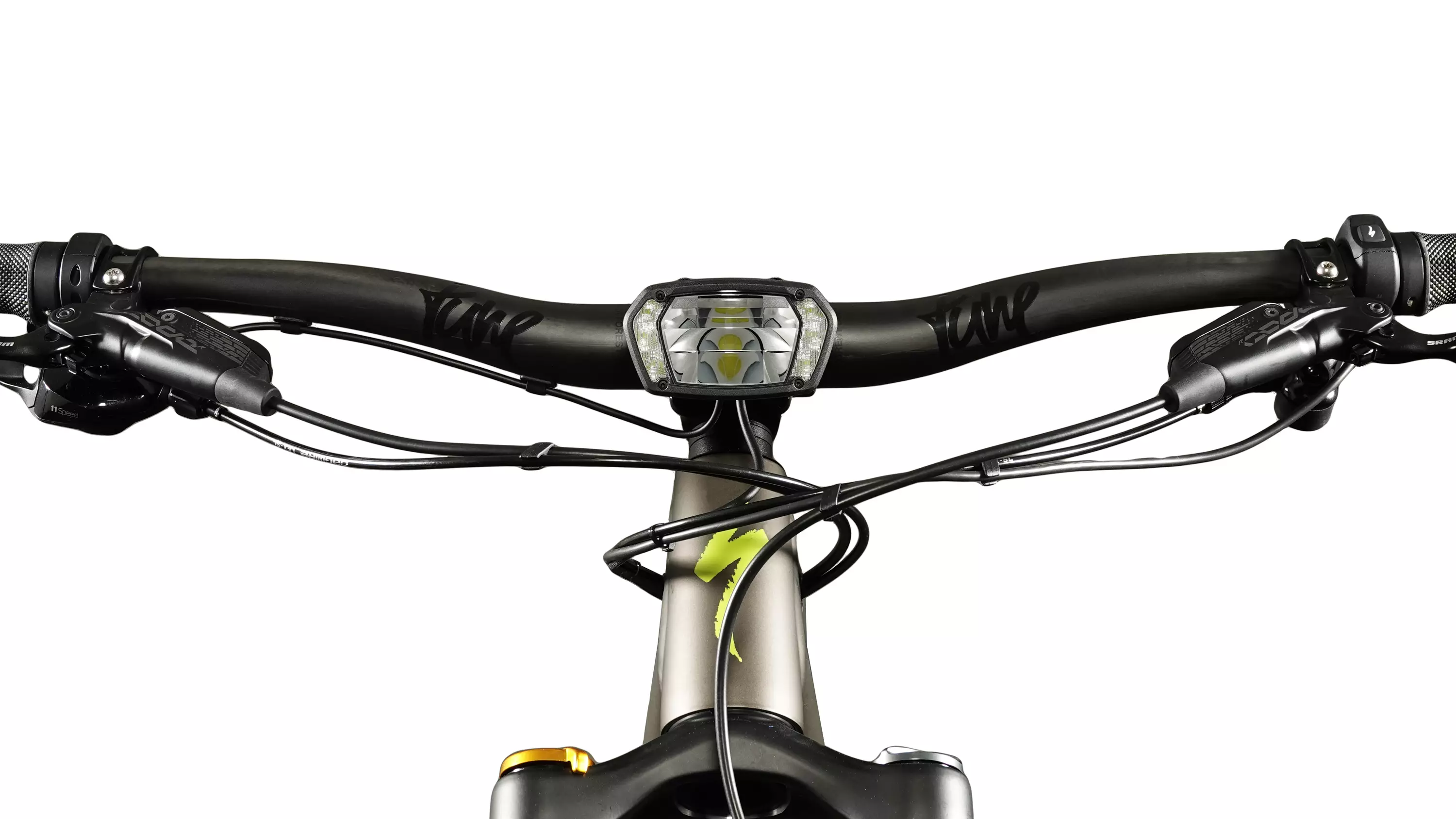

Lupine SL X Shimano 1800lm electric bile light. Electric bike light for bicycles equipped with Shimano motors. The light beam shape adheres to the strict German stVZO standard. SL X is designed like a car light: you can see far, but it won't blind other road users. The light sensor monitors the surrounding light levels and adjusts the luminaire either to daytime mode or the full 1800 lumen light output. The long-range beam is powered by 9 very bright LEDs, while the near-range beam is implemented with 6 LEDs and a Fresnel lens, commonly used in lighthouse lights. The housing is made of dust, water, and shock-resistant aluminum. Professional assistance is recommended for installation to maintain the bike's warranty. The product does not have its own battery.
Compatibility:
- Shimano Steps E8000, 6V 2000mA 12W
- Shimano Steps E5000, 12V 2000mA 24W
- Shimano Steps E6100, 12V 2000mA 24W
- Shimano Steps E7000, 12V 2000mA 24W
Technical Specifications:
- Maximum Luminous Flux: 1800 lm (12 V)
- Power: 24 W (12 V max), 12 W (6V Max.)
- Light Range: 290 m
- Brightness: 20000 cd
- Material: 6061-T6 aluminum
- Dimensions: 46 x 85 x 48 mm
- Waterproof Rating: IP68 (2m). Not intended for underwater use.
- Operating Voltage: 6-12 V
- Light Color: 6000 K (5% tolerance)
- Operating Temperature: -30C to +70C
Available accessories (bought separately):
- Electrical cable 120 cm Shimano, i2298
- SL X handlebar mount with a single attachment point 31.8 mm, i228
- SL X handlebar mount with a single attachment point 35 mm, i229
- SL X handlebar mount with two attachment points 31.8 mm, i227
