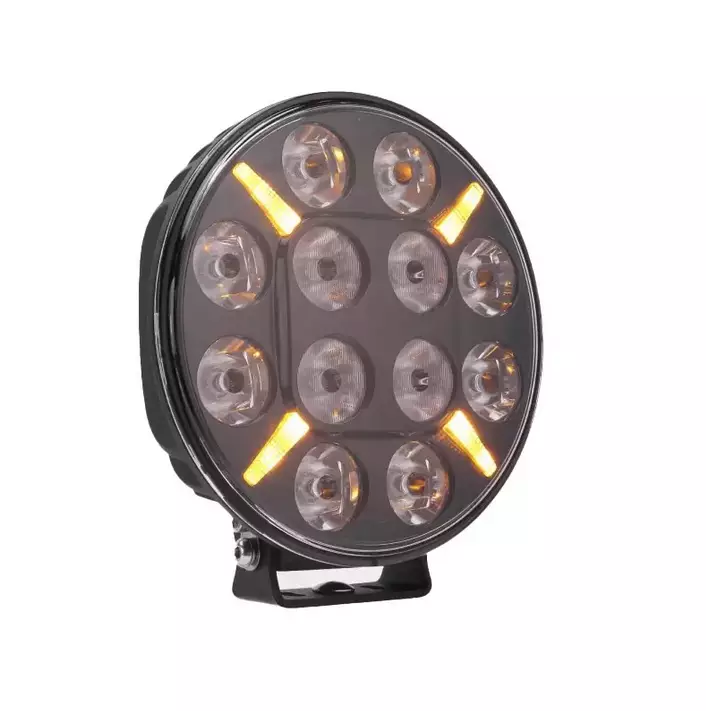

Swedstuff DRIVING LIGHT 9" 115W

Swedstuff 9 115W” – Versatile and Powerful LED Auxiliary Light

Swedstuff LDL-04 9” is engineered to deliver outstanding brightness, durability, and versatility in any environment. Designed for professional use and off-road performance, this LED light combines high-intensity driving light and dual position lights to ensure maximum visibility and safety. Featuring two operating modes – Xperience Mode for maximum output and E-Mode for energy-efficient lighting – it adapts to your needs effortlessly.

Key Features

• Dual lighting modes: 9,600 lumens (Xperience) and 4,600 lumens (E-Mode) for performance or efficiency.
• Long-range illumination: Reaches up to 650 meters (1 lux) in Xperience Mode.
• Combo beam: Optimized for both distance and width.
• Rugged build: Die-cast aluminum (ADC12) housing with durable polycarbonate lens.
• IP68/IP69K rated: Dustproof and waterproof for extreme conditions.
• Wide temperature range: Operates from -40°C to +60°C.

Technical Specifications

• Voltage: 9–36 V DC
• Power consumption: 115 W (Xperience) / 46 W (E-Mode)
• Luminous flux: 13,000 lm (theoretical) / 9,600 lm (Xperience) / 4,600 lm (E-Mode)
• Range: 650 m (1 lux)
• Color temperature: 5,700 K
• Position light: White
• Beam pattern: Combo
• Dimensions (D x Ø x H): 70 x 218 x 235.5 mm (with bracket)
• Cable length: 500 mm
• Connector: DT4
• IP rating: IP68 / IP69K
• Approvals: ECE R148 (R7), R149 (R112), R10
• Operating temperature: -40°C to +60°C
• Warranty: 24 months

Swedstuff LDL-04 9” – built for those who demand power, precision, and reliability.
