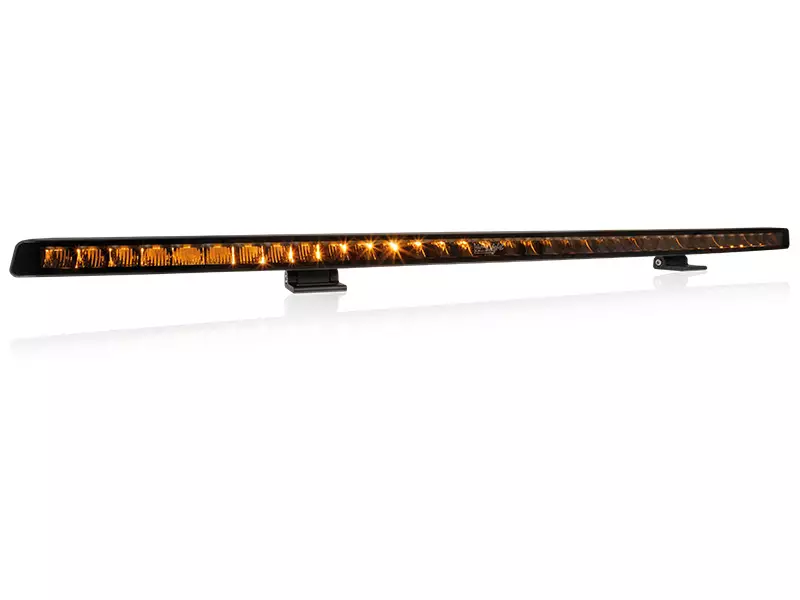

W-LIGHT SURGE SUPER SLIM 40 Led bar

W-Light Surge Super Slim 40” – Maximum Light in a Slim, Elegant Form

W-Light Surge Super Slim 40” is the flagship of the series – built for those who demand unmatched light output, refined design, and Nordic-grade durability. With 15,830 actual lumens and a range of up to 554 meters in Double-Up mode, it delivers incredible visibility for both highway and off-road use. Its 33 mm slim profile and curved shape allow seamless integration on any vehicle.

Key Features

• Dual position light: Choose between white or amber light that elegantly illuminates the full front lens.
• Double-Up technology: Two performance modes – one E-approved for the road, one for maximum off-road power.
• Extreme brightness: 15,830 measured lumens and 554 m reach for superior visibility.
• Ultra-slim design: Only 33 mm tall – ideal for roof or front integration.
• Built for harsh conditions: Aluminum housing, polycarbonate lens, IP68/IP69K protection.
• Easy installation: 2-pin DTP connector and 2.2 m cable included.
• ECE approved: Certified R148, R149, R10.

Technical Specifications

• Voltage: 9–36 V
• Luminous flux: 19,400 lm (theoretical) / 15,830 lm (measured)
• Range: 362 m / 554 m (Double-Up)
• Position light: White / Amber
• Color temperature: 5,000 K
• Reference number: 30
• Power draw: 19.16 A @ 13.7 V
• LED count: 36 pcs
• Dimensions (L x H x D): 1024 x 33 x 59 mm
• Weight: 5.0 kg
• Housing: Aluminum
• Lens: Polycarbonate
• IP rating: IP68 / IP69K
• Approvals: ECE R148, R149, R10
• Warranty: 24 months

W-Light Surge Super Slim 40” – powerful, refined, and built for perfection.
