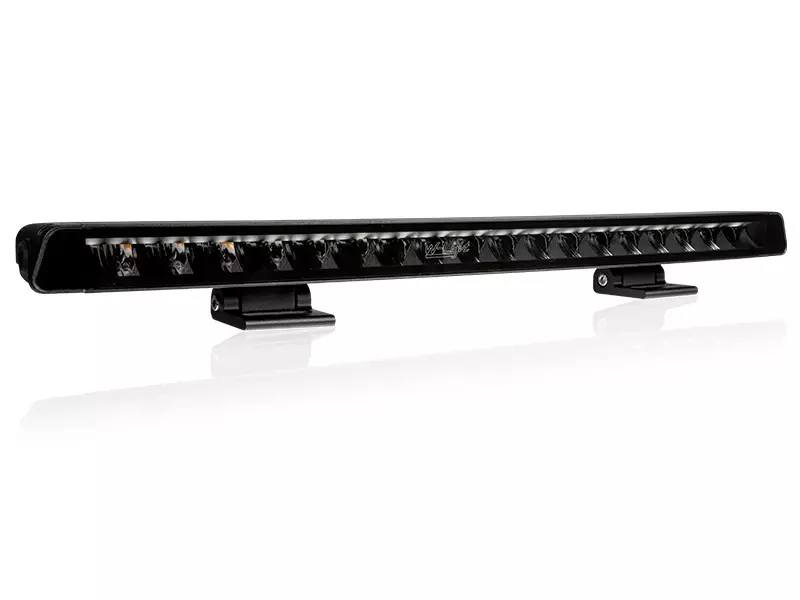

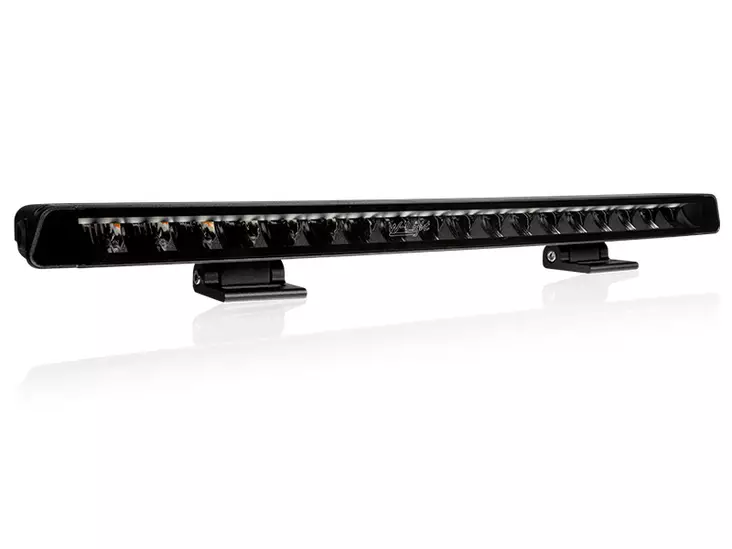

W-LIGHT SURGE SUPER SLIM 20 without park light Led bar

W-Light Surge Super Slim 20” – Streamlined Strength and Modern Design

W-Light Surge Super Slim 20” delivers maximum power in a slim profile. Producing 8,300 actual lumens and reaching up to 508 meters in Double-Up mode, it provides exceptional light performance for both on-road and off-road driving. Standing just 33 mm tall with a sleek curved design, it blends seamlessly into any modern vehicle setup.

Key Features

• Dual-mode function: Switch between legal road mode and powerful Double-Up mode when needed.
• Even beam pattern: Provides long, balanced illumination with superior reach.
• Ultra-slim design: Only 33 mm high – perfect for low-profile mounting in the grill or bumper.
• Premium build: Aluminum housing and polycarbonate lens with IP68/IP69K rating for durability.
• Easy installation: 4-pin DT connector and 2.2 m cable for quick setup.
• ECE approved: Certified under R148, R149, R10.

Technical Specifications

• Voltage: 9–36 V
• Luminous flux: 9,200 lm (theoretical) / 8,300 lm (measured)
• Range: 373 m / 508 m (Double-Up)
• Color temperature: 5,000 K
• Reference number: 30
• Power draw: 8.97 A @ 13.7 V
• LED count: 18 pcs
• Dimensions (L x H x D): 538 x 33 (47) x 59 mm
• Weight: 3.0 kg
• Housing: Aluminum
• Lens: Polycarbonate
• IP rating: IP68 / IP69K
• Approvals: ECE R148, R149, R10
• Warranty: 24 months

W-Light Surge Super Slim 20” – slim, stylish, and built for performance.
