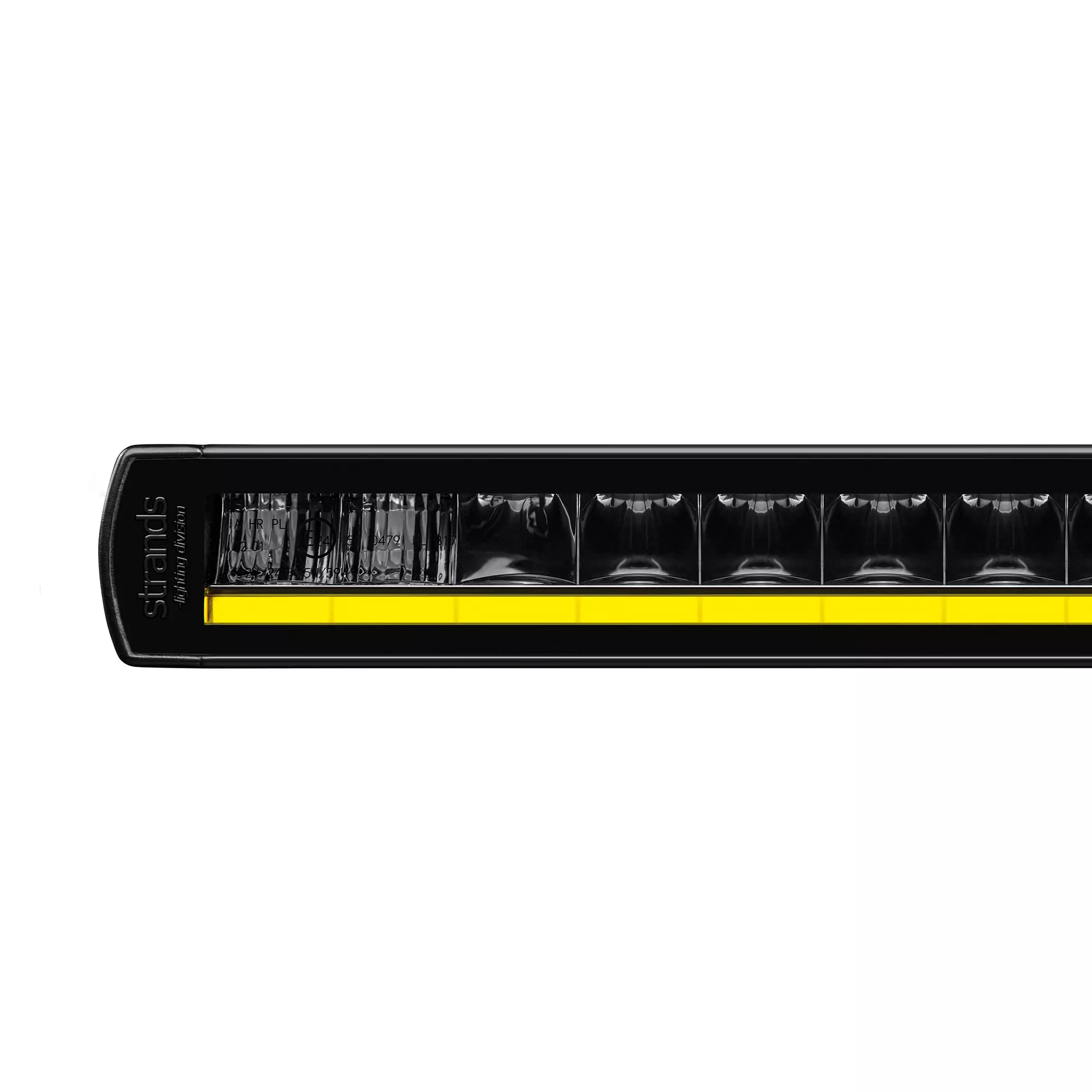

Strands Siberia XP SR LED Bar 12

Experience outstanding performance and innovative lighting with the Strands Siberia XP SR LED Bar 12. This compact yet powerful LED bar delivers an optimized beam pattern ensuring maximum visibility and performance. With an impressive range of 454 meters in Xperience mode, it provides the perfect balance of power and precision. Whether driving on highways or tackling tough terrain, this LED bar guarantees a first-class lighting experience.

Dynamic Position Light and Powerful High Beam Function
The Siberia XP SR LED Bar 12 gives you the option to choose between white and yellow position lights, allowing you to customize your lighting to suit your personal style and driving conditions. The powerful high beam function ensures wide and long-range illumination, making night driving safer and more comfortable. The yellow position light symbolizes the passion and innovation behind the Siberia XP series while enhancing vehicle visibility and safety.

Easy Installation and Robust Construction
The Siberia XP SR LED Bar 12 is designed for hassle-free installation with a DT-4PIN connector, allowing for quick and easy mounting. Its compact size makes it a versatile option for various vehicles and applications. The durable aluminum housing and polycarbonate lens ensure high durability and resistance to extreme weather conditions, from freezing cold to intense heat.

Optimized Beam Pattern and Maximum Efficiency
Designed for optimized illumination with a 12.6° beam angle, the Siberia XP SR LED Bar 12 provides an even and powerful light distribution across the road. With E-mode at 1,725 lumens and Xperience mode at 3,620 lumens, you can adjust the lighting to meet your needs while maximizing energy efficiency. The combination of high-quality materials and advanced technology guarantees long-lasting durability and exceptional performance.

Technical Specifications

• Voltage: 10-32V DC

• Theoretical Power: 50W

• Power Consumption:

  • E-mode: 25W

  • Xperience mode: 50W

• Functions: High beam, white and yellow position light

• Power per Function:

  • White position light: 5.1W

  • Yellow position light: 5.1W

• Luminous Flux:

  • E-mode: 1,725 lumens

  • Xperience mode: 3,620 lumens

• Range (1 lux):

  • E-mode: 300 meters

  • Xperience mode: 454 meters

• Color Temperature: 5700K

• Beam Pattern: Optimized beam

• Beam Angle: 12.6°

• Connection: DT-4PIN

• Cable Length: 200 mm

• Color (Housing/Lens/LED): Black / Clear / White & Yellow

• Material:

  • Bracket: Aluminum

  • Housing/Chassis: Aluminum

  • Lens: Polycarbonate

• Dimensions:

  • Length: 304.7 mm

  • Depth: 55.5 mm

  • Height: 45 mm (64.5 mm with bracket)

• Weight: 1.17 kg

• Protection Class: IP68 / IP69K

• Operating Temperature: -35°C to +65°C

• E-Approval: Yes

• Approval According to Standard: ECE R148 (R7), R149 (R112)

• Reference Number: 20

• EMC Certification: ECE R10

The Strands Siberia XP SR LED Bar 12 is a state-of-the-art lighting solution for drivers who demand both performance and durability. Whether driving in darkness or extreme weather conditions, this LED bar ensures a powerful and reliable lighting experience every time you turn it on.
