Strands Siberia XP DR Led Bar 32

Strands Siberia XP DR LED Bar 32

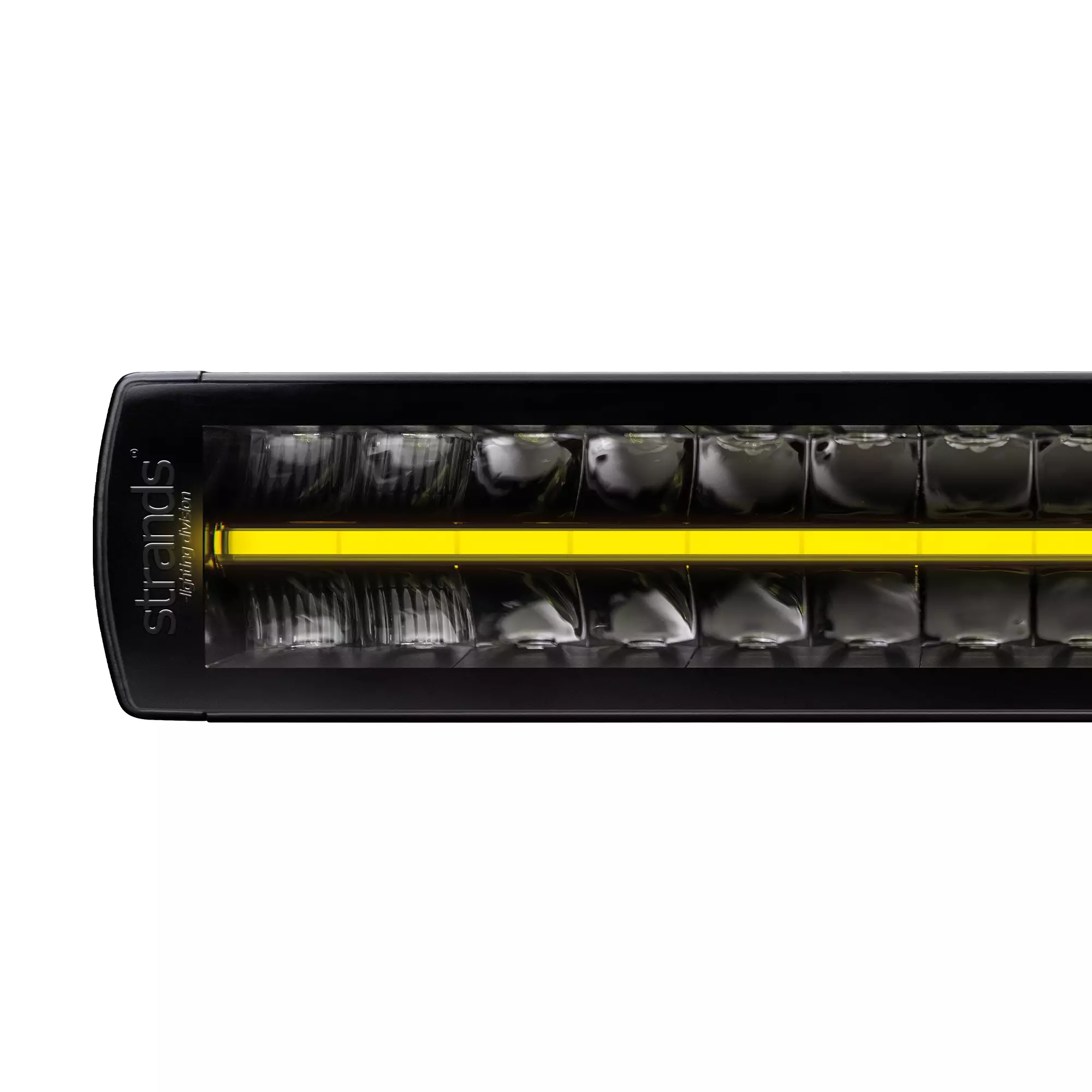

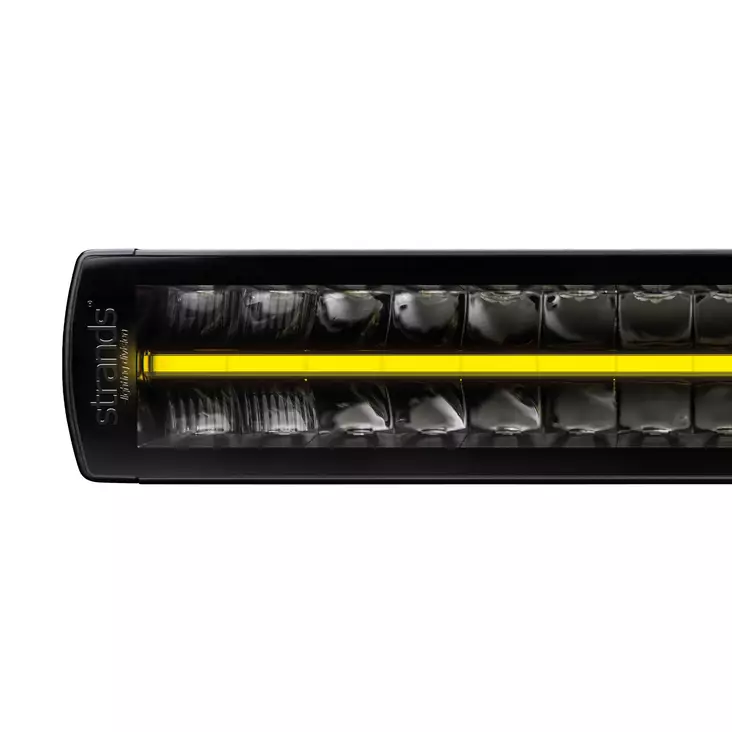

Experience uncompromising performance and extreme range with the Strands Siberia XP DR LED Bar 32. This powerful LED bar is designed for drivers who demand maximum illumination under all conditions. With a range of up to 942 meters in Xperience mode and a brightness of 19,150 lumens, it provides outstanding visibility on dark roads and in challenging terrains. The robust aluminum construction and clear polycarbonate lens ensure durability and optimal light distribution.

Dynamic Position Light and Hello Function
With the ability to choose between white and yellow position lights, you can customize your lighting according to your personal style and driving conditions. The Hello function is a unique feature activated by flashing the high beam twice, creating a dynamic light animation – perfect for greeting other drivers or signaling on the road. The yellow position light symbolizes the passion and innovation behind the Siberia XP series and gives a distinctive look.

Easy Installation with Built-In Relay
The Siberia XP DR LED Bar 32 is equipped with a built-in relay, making installation quick and easy. You avoid complicated wiring and can instead focus on what matters most – achieving world-class illumination. With an IP68/IP69K rating, this LED bar is both dust and waterproof, making it ready to handle extreme environments and weather conditions. The wide operating temperature range from -35°C to +65°C ensures reliable function year-round.

Maximum Light Distribution and Range
With a Long-Distance Beam light profile and a beam angle of 13.7°, this LED bar delivers a powerful and focused light beam that reaches far without losing intensity. E-mode provides energy-efficient illumination at 1,200 lumens, while Xperience mode delivers an impressive 19,150 lumens for maximum performance. Whether you're driving on highways or off-road terrain, you’ll experience optimal light distribution that enhances both visibility and safety.

Technical Specifications

• Voltage: 10-32V DC

• Power Consumption:

  • E-mode: 17W

  • Xperience mode: 245W

• Functions: High beam, white and yellow position light, Hello function

• Power per Function:

  • White position light: 18W

  • Yellow position light: 17.9W

• Luminous Flux:

  • E-mode: 1,200 lumens

  • Xperience mode: 19,150 lumens

• Range (1 lux):

  • E-mode: 300 meters

  • Xperience mode: 942 meters

• Color Temperature: 5700K

• Beam Pattern: Long-Distance Beam

• Beam Angle: 13.7°

• Connection: Cable

• Cable Length: 2500 mm

• Color (Housing/Lens/LED): Black / Clear / White & Yellow

• Material:

  • Bracket: Aluminum

  • Housing/Chassis: Aluminum

  • Lens: Polycarbonate

• Dimensions:

  • Length: 820.4 mm

  • Depth: 71.6 mm

  • Height: 76 mm (96.6 mm with bracket)

• Weight: 4.5 kg

• Protection Class: IP68 / IP69K

• Operating Temperature: -35°C to +65°C

• E-Approval: Yes

• Approval According to Standard: ECE R148 (R7), R149 (R112)

• Reference Number: 20

• EMC Certification: ECE R10

The Strands Siberia XP DR LED Bar 32 is the ultimate choice for drivers who demand exceptional brightness, long range, and an innovative design. Perfect for both professionals and enthusiasts who want the best lighting on the market!
