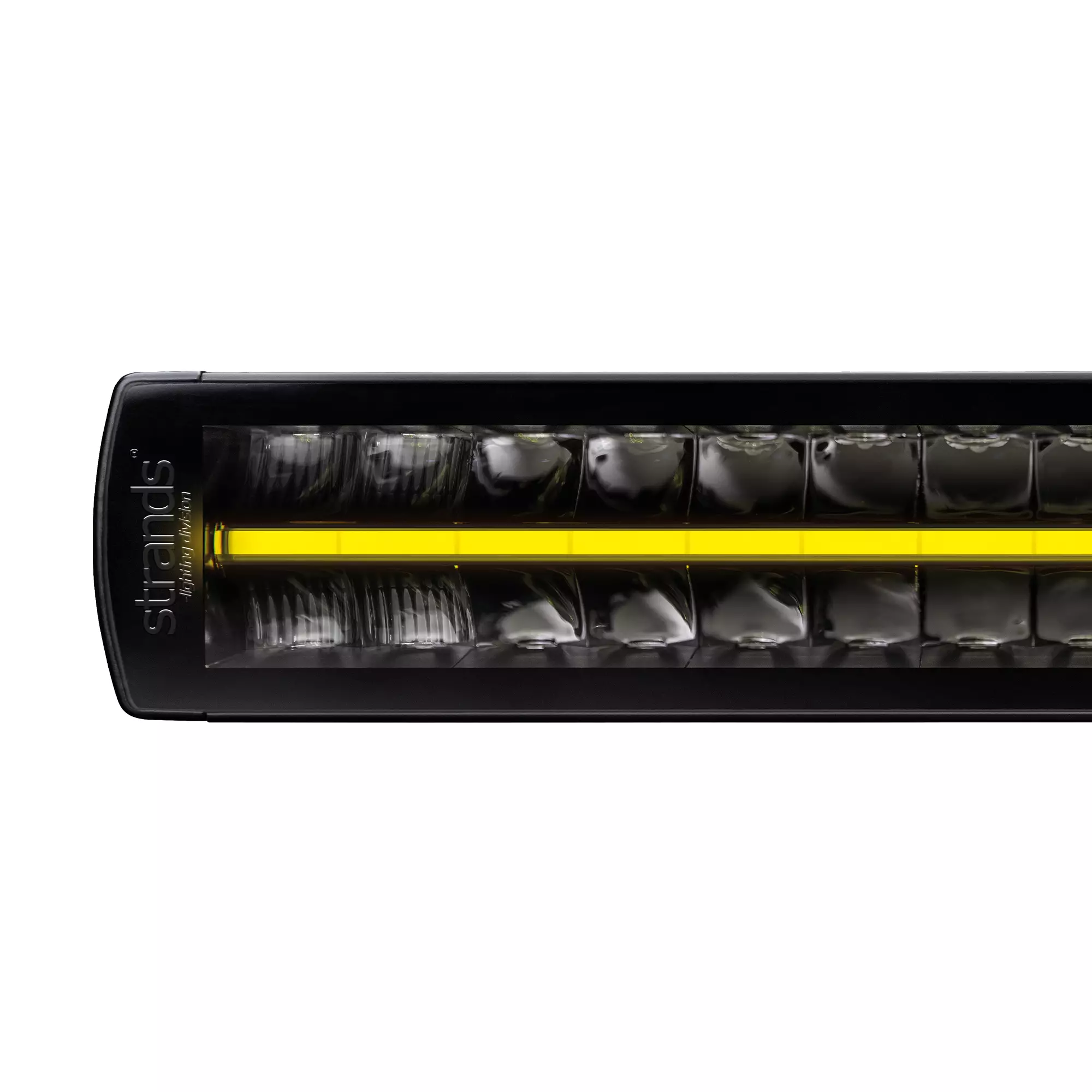

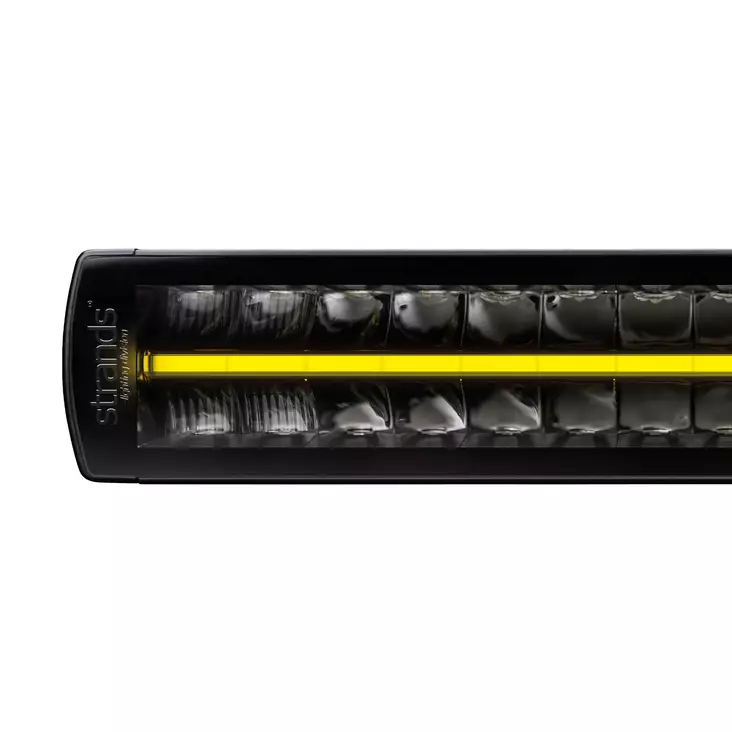

Strands Siberia XP DR LED Bar 22

Experience powerful and long-range illumination with the Strands Siberia XP DR LED Bar 22, a LED bar that combines extreme performance with modern design. With a range of up to 853 meters in Xperience mode and a brightness of 13,050 lumens, this LED bar provides superior visibility in dark and demanding conditions. The robust aluminum construction and clear polycarbonate lens ensure durability and optimal light distribution for all types of driving environments.

Dynamic Position Light and Hello Function
The Siberia XP DR LED Bar 22 allows you to choose between white and yellow position lights, making it easy to customize the lighting according to your style and driving situation. The Hello function is an innovative feature activated by flashing the high beam twice, creating a dynamic lighting effect – perfect for greeting other drivers or signaling on the road. The yellow position light symbolizes the passion and expertise behind the Siberia XP series, providing a unique lighting experience.

Effortless Installation and Built-In Relay
Thanks to the built-in relay, installation is easier than ever. The relay minimizes the need for additional cables, making the setup smooth and hassle-free. With an IP68/IP69K rating, this LED bar is protected against dust, dirt, and high-pressure washing, making it a durable solution for both tough work environments and extreme weather conditions. The wide operating temperature range from -35°C to +65°C ensures reliable performance in all climates.

Extreme Light Pattern and Long-Range Performance
The Long-Distance Beam light profile provides a powerful and focused beam with a beam angle of 12.7°, ensuring an optimal combination of range and brightness. E-mode offers energy-efficient illumination at 1,425 lumens, while Xperience mode delivers an impressive 13,050 lumens for maximum light output. The advanced technology of the Siberia XP series ensures that the light is optimally distributed over the road, giving drivers better visibility and safer driving, even in the darkest conditions.

Technical Specifications

• Voltage: 10-32V DC

• Power Consumption:

  • E-mode: 19W

  • Xperience mode: 184W

• Functions: High beam, white and yellow position light, Hello function

• Power per Function:

  • White position light: 16.9W

  • Yellow position light: 16.7W

• Luminous Flux:

  • E-mode: 1,425 lumens

  • Xperience mode: 13,050 lumens

• Range (1 lux):

  • E-mode: 300 meters

  • Xperience mode: 853 meters

• Color Temperature: 5700K

• Beam Pattern: Long-Distance Beam

• Beam Angle: 12.7°

• Connection: Cable

• Cable Length: 2500 mm

• Color (Housing/Lens/LED): Black / Clear / White & Yellow

• Material:

  • Bracket: Aluminum

  • Housing/Chassis: Aluminum

  • Lens: Polycarbonate

• Dimensions:

  • Length: 565.4 mm

  • Depth: 71.6 mm

  • Height: 76 mm (96.6 mm with bracket)

• Weight: 2.97 kg

• Protection Class: IP68 / IP69K

• Operating Temperature: -35°C to +65°C

• E-Approval: Yes

• Approval According to Standard: ECE R148 (R7), R149 (R112)

• Reference Number: 20

• EMC Certification: ECE R10

The Strands Siberia XP DR LED Bar 22 is the ultimate choice for drivers who demand extreme brightness, long range, and a robust design. Perfect for both professional users and enthusiasts who want the best lighting on the market!
