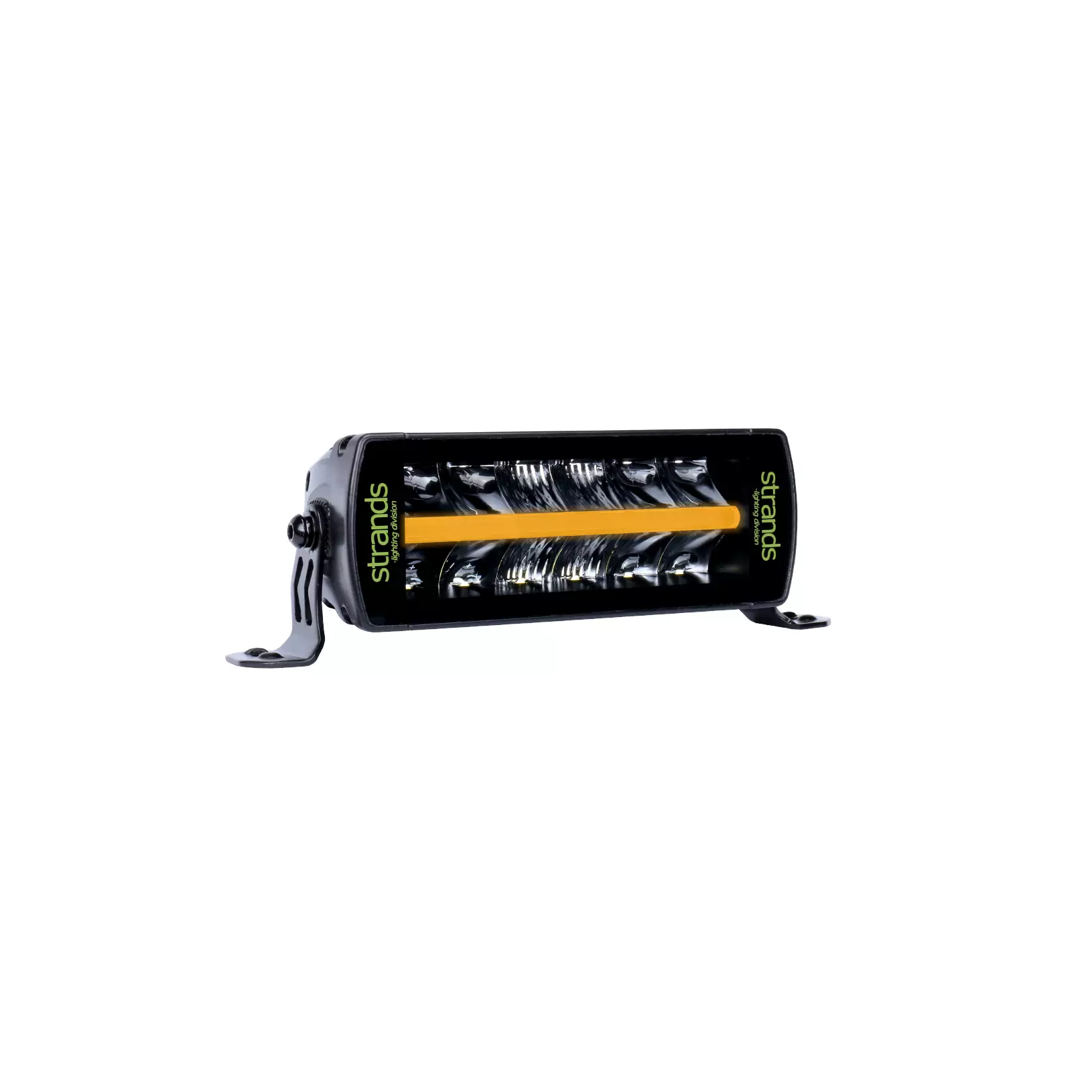

Strands Siberia Outlaw UDX 8'' led bar

Strands Siberia Outlaw UDX 8″ is a massive power package in a small costume, unlike previous LED bars of the same size. The Xperience mode provides 5758 actual lumens and a consumption of 66 W. The E-approved mode also delivers an extensive and powerful light with 2788 actual lumens and a consumption of 32 W.

Technical specifications:

• Type of lamp: LED
• Type of LED: OSRAM P9 & CREE XPP
• PCS LED´s: 12
• Voltage (V DC): 10-32V DC
• Theoretical effect (w) 12V 120W
• Theoretical effect (w) 24V 120W
• Consumption (w) 12V E-approved mode: 31.7W
  Experience mode: 66.3W
• Consumption (w) 24V E-approved mode: 31.7W
  Experience mode: 66.3W
• Consumption specific function (w) 12V White position light: 1.8W
  Amber position light:3.7W
• Consumption specific function (w) 24V White position light: 1.9W
  Amber position light: 3.8W
• Theoretical lumen 7167
• Actual lumen E-approved mode: 2788
  Experience mode: 5758
• 1 LUX @ m E-approved mode: 327 m
  Experience mode: 464 m
• Kelvin 6500K
• IP-class 67/69K
• Colour housing Black
• Colour lens Clear
• Colour LED´s While
• Beam pattern Combo
• Position light Yes white and amber
• Connection DT4
• Cable length (mm) 500
• Material bracket Stainless steel side brackets and aluminum bottom bracket
• Material housing/chassi Aluminium
• Material lens Polycarbonate
• Length (mm) 205
• Depth (mm) 71.6
• Height (mm) 76
• Height including bracket (mm) 89
• Operating temperature -30°C – +65°C
• ADR-approved No
• E-approved  Yes
• According to regulation ECE R148 R149
• Reference number 25
• EMC ECE R10
