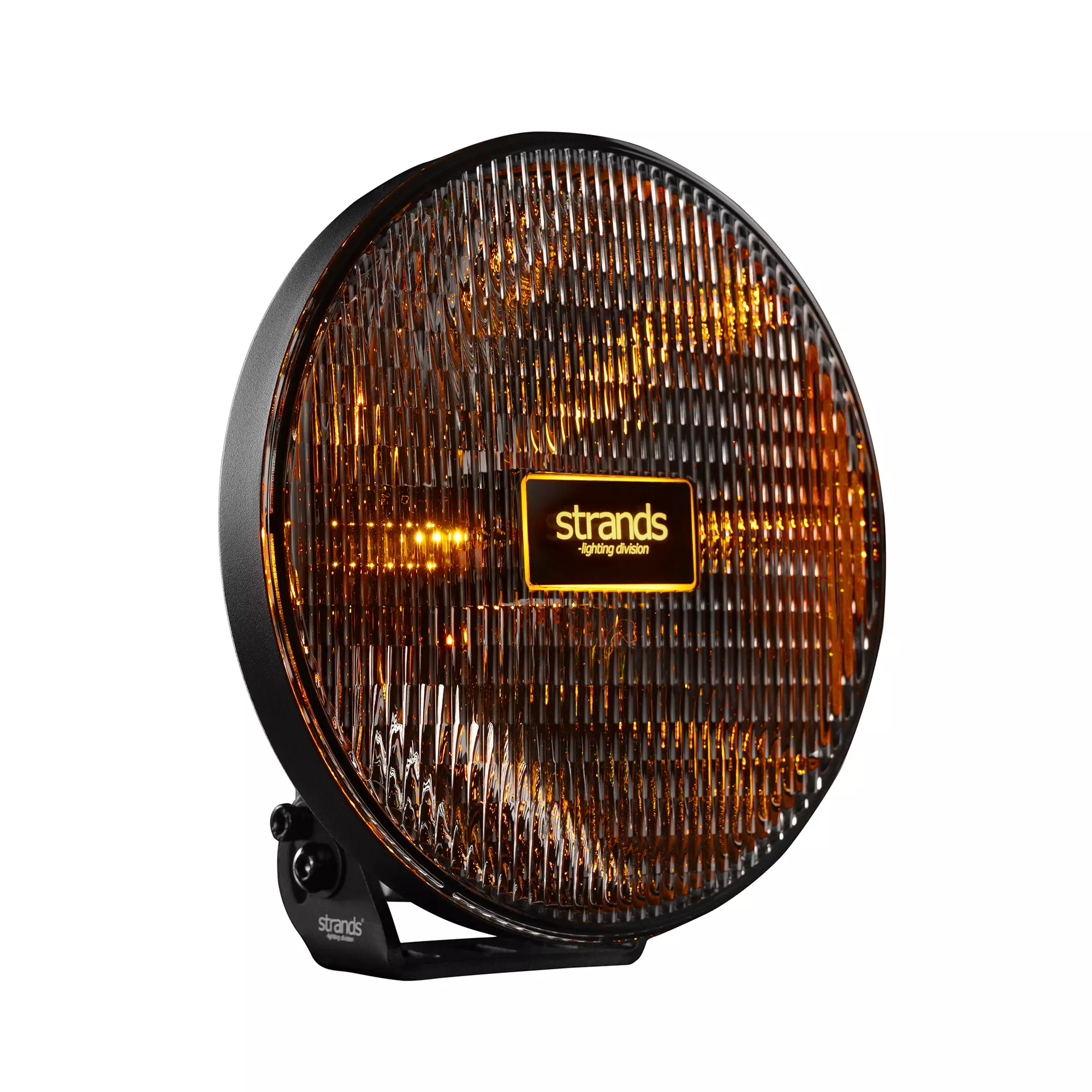

Strands IZE LED OG LED LIGHT 9












- Product Code: 8020112810
- Category: 102
- In stockThe product will be sent in 1-2 days
- Delivery costs starting from 12,99 € (Germany)
Modern power and old-school style. The Strands IZE LED OG provides top-notch illumination with 12000 actual lumens and a 500-meter range in Xperience mode. The E-mode is E-approved R148/149 with reference number 20. It’s suitable for European roads and poor weather conditions, as it lessens glare from snow and rain. The extended beam pattern has a color temperature of 4500 K. A dual-color position light in white and amber creates a stunning old-school glow, just like in old times. The position light diodes are invisible when not used, so that you can enjoy the old-school design and expression of the lens. It’s inspired by the classic glass lenses but made from durable polycarbonate for modern quality. Thanks to the IP rating of IP68/69K, it can withstand both dirt and water. It’s covered by Strands' 3-year warranty to guarantee a long lifespan.
Feature | Value |
---|---|
Warranty | 3 years |
1 LUX @ m | E-mode: 273m / Xperience mode: 506 |
According to regulation | R148, R149 |
Actual lumen | E-mode: 3220lm / Xperience mode: 12000 |
ADR-approved | No |
Beam pattern | Extended Beam |
Black cable | - (Negative) |
Cable length (mm) | 2500 |
Color housing | Black |
Color LED´s | White, amber |
Color lens | Clear |
Connection | Cable |
Depth (mm) | 94.8 |
Depth inner box (mm) | 109 |
Diameter (mm) | 215 |
E-approved | Yes |
EMC | R10 |
Height including bracket (mm) | 225.4 |
Height inner box (mm) | 224 |
Height master carton (mm) | 235 |
IP-class | 68/69K |
Kelvin | 4500 |
Lenght master carton (mm) | 655 |
Length inner box (mm) | 311 |
Material bracket | Stainless Steel |
Material housing/chassi | Aluminium |
Material lens | Polycarbonate |
Mounting details included | Bracket, screws, bolts, nuts, washers, silicon pads |
Operating temperature | -40 - +60 |
Red cable | + (High Beam) |
Reference number | 20 |
Theoretical lumen | 13500 |
Voltage (V DC) | 12-36 |
Weight master carton (kg) | 19.5 |
White cable | (+) White position light |
Widht master carton (mm) | 470 |
Yellow cable | (+) Amber position light |
