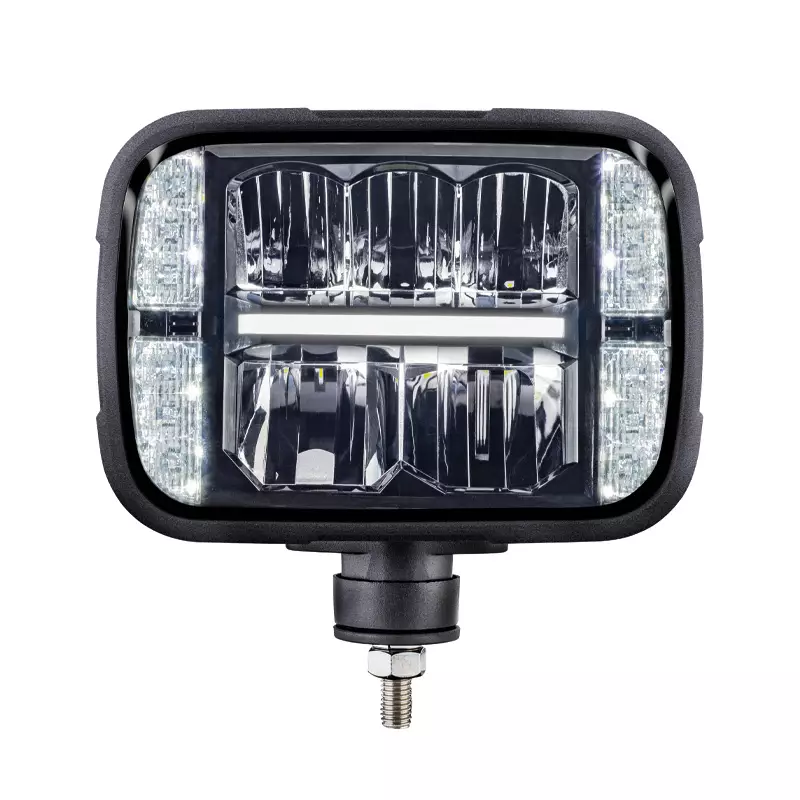

Strands Alaska Snow plow light

Strands Alaska Snow plow light

Technical specifications:

• Type of lamp LED
• Type of LED OSRAM & CREE
• PCS LED´s 5
• Voltage (V DC) 9-32V DC
• Consumption (w) 12V Position light: 4.5W. Indicator: 5W. High beam: 57W. Low beam: 17W. Heating lens: 36W
• Consumption (w) 24V Position light: 5W. Indicator: 6W. High beam: 55.5W. Low beam: 18.5W. Heating lens: 31W
• Functions High beam. low beam. position light. indicator. heated lens
• Theoretical lumen 3000 (high beam). 2400 (low beam)
• Actual lumen 1380 (high beam) 1008 (low beam)
• 1 LUX @ m 80 (low beam) 160 (high beam)
• Kelvin 6000
• IP-class 67/69K
• Colour housing Black
• Colour lens Clear
• Colour LED´s White
• Beam pattern Combo high beam. combo low beam
• Position light Yes
• Connection DT-6
• Cable length (mm) 500
• Material bracket Stainless steel
• Material housing/chassi Aluminium
• Material lens Glass
• Length (mm) 200.4
• Depth (mm) 85.5
• Height (mm) 142.4
• Height including bracket (mm) 177.8
• Operating temperature -30°C – +65°C
• ADR-approved No
• E-approved  Yes
• According to regulation ECE R6. R7. R112
• Reference number 17.5
• EMC ECE R10
