Optibeam Se7en led auxiliary light

Optibeam SE7EN auxiliary light is a light where every last detail has been taken into account. The design of Optibeam SE7EN has listened to the wishes of both everyday and professional drivers and put them into practice. The result is an incredibly stylish round auxiliary light with a parking light, leaving no details or features overlooked.

Technology:

The impressive 9159 measured lumens (Double up*) ensure that your journey is safe, and you can see from a distance what lies ahead. Despite the light's impressive power, Optibeam has managed to keep the reference number moderate (30).

Optibeam SE7EN light's dark-toned optics have been refined to produce an unprecedentedly wide pattern illuminating the sides of the road, without forgetting that a good auxiliary light should also show far ahead. This is evidenced by the reading of 1 lux @ 500 m for a single light, so when you install two, three, or four lights, you can be sure that the length and brightness of the light beam will not disappoint.

The color temperature of the light beam has also been carefully considered at a pleasant 5500 Kelvin, equivalent to pure white.

*The light features a Double Up function, allowing the light output to be increased above road-legal power when the need for light is high. The Double Up light output is in use when the brown limiting wire is left unconnected.

Double Up Function - On:

• When you need more range for the light. (Approved for off-road use only)
• With the Double Up function on, Optibeam SE7EN achieves 1 lux @ 500 m.

Double Up Function - Off:

• When you need only the width of the auxiliary light and not an extra-long range.
• Perfect, for example, in rainy or foggy weather.

External Features:

Optibeam SE7EN auxiliary light includes the latest LED technology and is finished with a striking and high-quality outer shell, crowned by a frameless lens. The sensibly designed frameless lens ensures that snow, slush, and other dirt do not stay on top of the light lens but run off, making your journey safer due to maintaining good visibility.

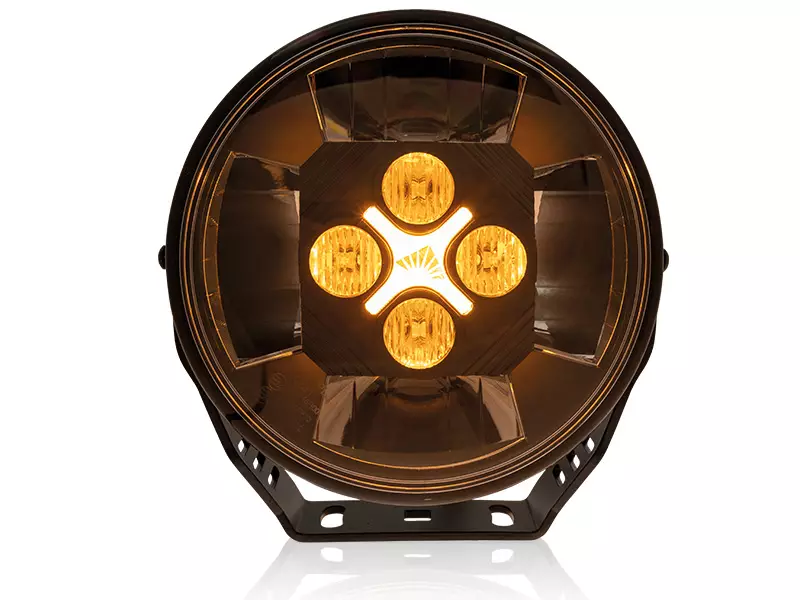

The light also has an exceptionally stylish X-parking light, which you can choose to illuminate in either orange or white.

To facilitate installation, two alternative mounting brackets, a lower bracket, and a U-bracket, are included with the light, allowing you to choose the most suitable option for your installation. The lower bracket allows for the lights to be installed closely side by side, for example, on a bullbar, while the U-bracket allows for more precise adjustment of the light angle.

When it comes to genuine Optibeam products, you can be sure that quality and performance are not compromised.

2pcs complete kit includes:

• 2pcs Optibeam SE7EN LED auxiliary light
• Relay cable set with DT-4 connector
• Licence plate bracket RST Pro 3mm
• 2pcs Support rod, black
• Mounting screws for the auxiliary light bracket (10pcs)

3pcs complete kit includes:

• 3pcs Optibeam SE7EN LED auxiliary light
• Relay cable sets with DT-4 connector
• Licence plate bracket for 3 lights Wide RST
• 3pcs Support rod, black
• Mounting screws for the auxiliary light bracket (10pcs)

Technical specifications for one light:

• Dimensions: ? 178.00 x 83.00mm
• Weight: 1.60kg
• Voltage: 9-36V
• Luminous flux (theoretical): 10400 lm
• Luminous flux (measured): 9159 lm
• Reference: 30
• Color temperature: 5500 K
• Connector type: 4-pin DT
• Cable length: 850 mm
• Approvals: R148/149, R10
• Model name: SE7EN
• Amount of leds: 8x Leds
• Double Up function
• Orange/white position light (both with individual wires)
• Power consumption: 11.16A@13.7V, 1 lux @ 500 m
