Optibeam Nin9 Led Auxiliary Light

Optibeam NIN9 is Optibeam's most powerful round LED auxiliary light ever, as they have taken every detail into account. Optibeam NIN9 auxiliary light is designed in collaboration with professional drivers to create the most optimal auxiliary light possible. The end result is an elegant and stylish auxiliary light with tremendous power.

The strong 11,400 measured lumens (with Double-Up*) will illuminate the road far ahead of you, giving you the chance to see what lies ahead so you can relax and have a safe journey. The overwhelming power of Optibeam NIN9 yields has reference number of 30.

NIN9 optics are polished and refined to produce an unparalleled wide pattern without compromising on length. This is evident when NIN9 produces 1 lux @ 580m for only one lamp. With two, three, or four lamps mounted, they will not disappoint. The optics also feature DarkLens technology, making the reflectors appear darker to the human eye and giving the lamp its stylish appearance without reducing the light output.

After several tests and feedback from drivers, the color temperature was carefully selected to be a pleasant 5500 Kelvin, equivalent to pure white.

Double Up function - BOOST on:

• When you feel you need extra length in the light pattern from the auxiliary lights, for example, when driving on a smaller country road.
• Optibeam NIN9 reaches an astonishing 580m @ 1 Lux with Double Up Boost.

The Double Up Boost function can, of course, be on at all times if desired.

Double Up function - BOOST off:

• When you feel you only need the width of the auxiliary light and not the length in the light pattern, NIN9 delivers 245m @ 1 Lux.
• Perfect for rainy or foggy weather, for example.

*The light has a Double Up function that allows the light output to be increased when the need for light is high. The Double-Up function is activated when the limiting cable is left unconnected or connected to a switch/button.

Features to make it both safe and stylish!

Optibeam NIN9 auxiliary light incorporates the latest LED technology and is built with an appealing and high-quality outer housing in aluminum, crowned by a frameless lens. The sensibly designed frameless lens ensures that snow, slush, and other dirt do not stay on top of the light lens but run off, ensuring a good light pattern regardless of conditions.

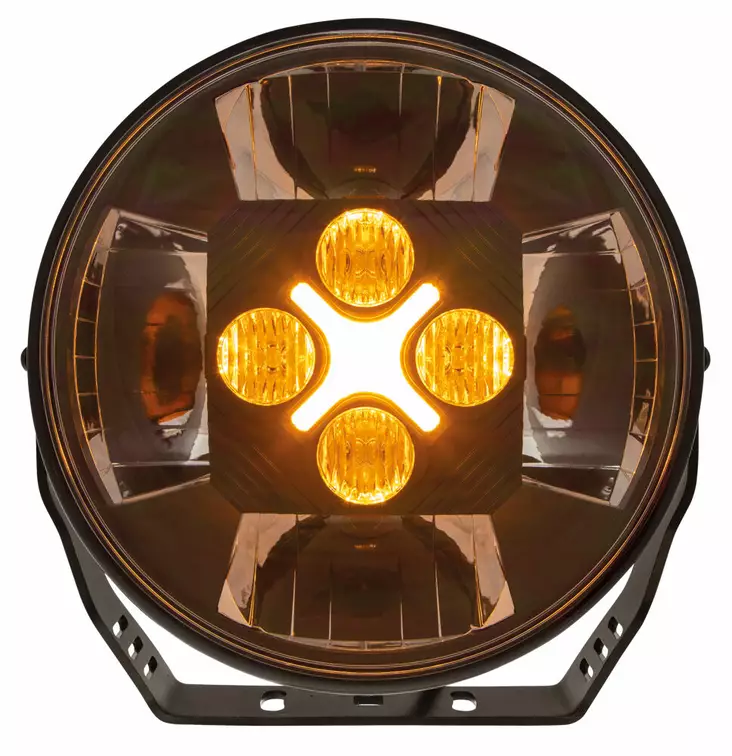

The lamp also has an eye-catching X-Style parking light, which you can choose to illuminate in either orange or white.

One of the most requested features is the ability to change mounting brackets. Optibeam NIN9 comes with two alternative mounting brackets, a hoop bracket, and a pedestal bracket, from which you can choose the most suitable option for your installation.

When it comes to Optibeam, you can be sure that quality and performance are not compromised.

Technical specifications:

• Double-Up function
• Parking light: X-style Orange/white (both with individual control)
• Luminous flux: (theoretical / measured) 14000 lm / 11400 lm
• Range without Double Up Boost activated: 245m lux @ 1 Lux
• Beam length with 1 NIN9 with Double Up Boost: 580m @ 1 Lux
• Beam length with 2 NIN9 with Double Up Boost: 820m @ 1 Lux (474m @ 3 Lux & 1625m @ 0.25 Lux)
• Beam length with 3 NIN9 with Double Up Boost: 1005m @ 1 Lux (580m @ 3 Lux & 1625m @ 0.25 Lux)
• Beam length with 4 NIN9 with Double Up Boost: 1160m @ 1 Lux (670m @ 3 Lux & 1625m @ 0.25 Lux)
• Cable/connector: 85 cm, 4-pin Deutsch DT connector
• Width: 220 mm
• Height: 220 mm
• Depth: 83 mm
• Power consumtion: 11.16 A @ 13.7 V
• Approvals: R148 / 149, R10
• Operating voltage: 9-36 V
• Color temperature: 5500 K
• Reference number: 30
• Led amount: 8 x LED
