NUUK D-LINE LED BAR 20?

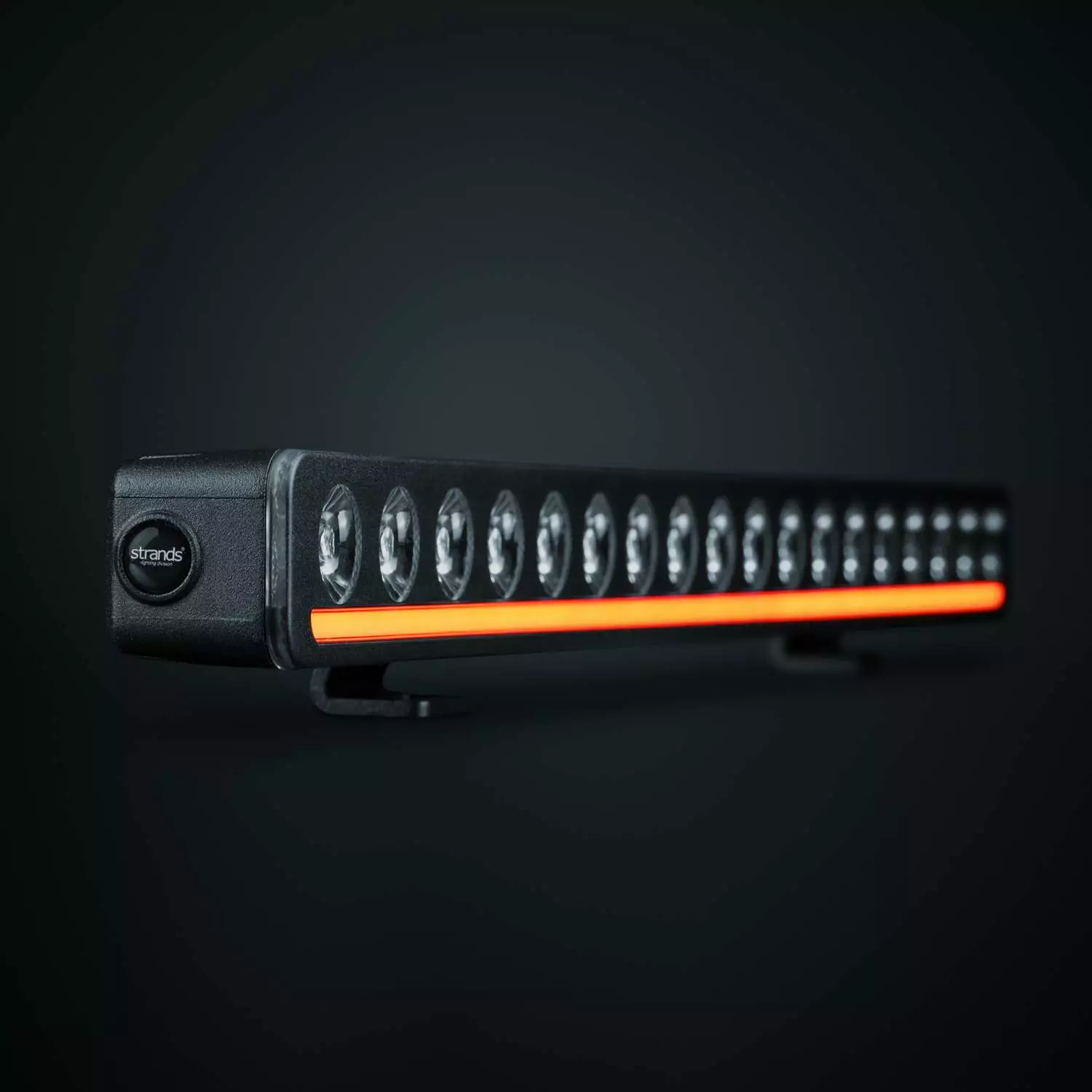

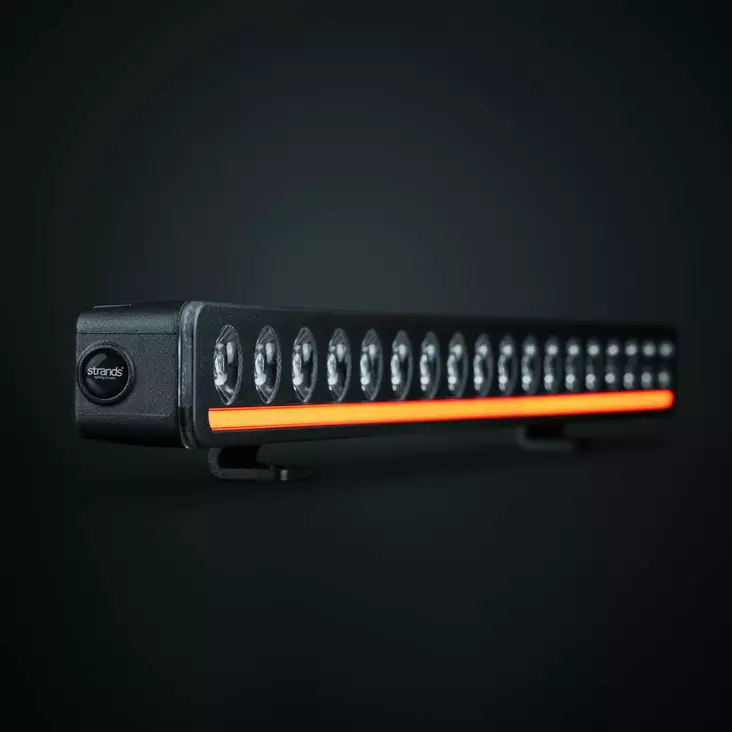

Strands Nuuk D-Line 20” – Slim LED Bar with Long Range and Premium Design

Strands Nuuk D-Line 20” combines style and performance in a sleek, compact form. With a range exceeding 492 meters and 9,600 actual lumens in Xperience mode, it extends your high beam with a clear and powerful light pattern. Despite its power, it remains ultra-thin – only 3.3 cm deep and 4.5 cm high including the bracket.

Key Features

• Optimized beam pattern: Offers wide and long illumination for excellent road coverage.
• Xperience & E-mode: E-approved (R148/R149, Ref. 20) and powerful Xperience mode for dark driving conditions.
• Duo position light: Choose between white and amber for a stylish look.
• Sleek design: Black lens and slim profile ensure seamless integration with modern vehicles.
• Easy mounting: Compatible with a license plate bracket for a clean, no-drill installation.
• Weather-resistant build: IP68/IP69K rated, resistant to water, dust, and extreme temperatures (-40°C to +60°C).
• Simple installation: Built-in relay and 2.5 m cable for hassle-free setup.

Technical Specifications

• Voltage: 9–36 V DC
• Power: 125 W
• Luminous flux: 3,300 lm (E-mode) / 9,600 lm (Xperience mode)
• Range: 291 m (E-mode) / 492 m (Xperience mode)
• Color temperature: 5,000 K
• Beam angle: 28.8°
• Connection: Cable (2.5 m)
• IP rating: IP68 / IP69K
• Dimensions (L x D x H): 513.5 x 32.8 x 35.4 mm (44.5 mm with bracket)
• Weight: 1.2 kg
• Housing: Aluminum
• Lens: Polycarbonate
• Bracket: Stainless steel
• Approvals: ECE R148, R149, R10
• Reference number: 20

Strands Nuuk D-Line 20” – slim, elegant, and built for maximum light output and durability.
