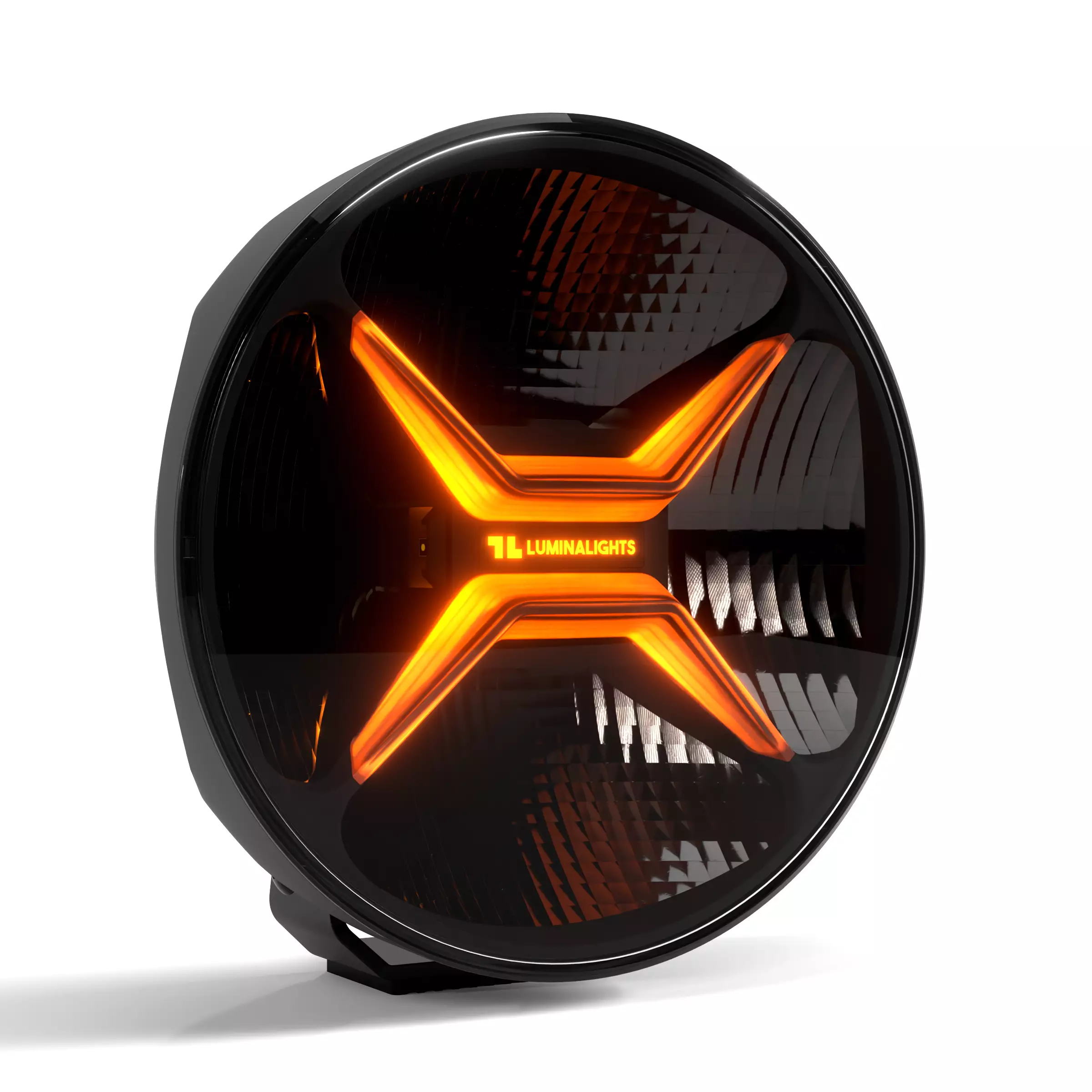

LuminaLights Rebellion MAX 9 LED Auxiliary light

LuminaLights Rebellion MAX 9 ? Premium-Class led Auxiliary Light With Extreme Range and Top-Tier Performance
The LuminaLights Rebellion was a legend from the moment it was born, and the iconic model series equipped with the X-shaped position light has now received its well-deserved upgrade!

Step into a new era of lighting technology. The all-new LuminaLights Rebellion MAX 9 led auxiliary light delivers the most powerful illumination on the market, exceptional long-distance reach, and a modern appearance ? the perfect choice for off-road driving, trucks, or anyone who wants the best possible visibility in the dark.

Available exclusively from Lumine.

State-of-the-Art led Technology and Prism Lens Mirror Optics
The Rebellion MAX 9 utilizes advanced led technology and prism-lens mirror optics to produce an extremely long and wide light beam.
The dynamic Smooth Dark DRL X daytime running light (white/orange) gives your vehicle a modern and striking look. The integrated Dynamic Start animation brings your position lights to life with a captivating startup sequence!

Built to Withstand Extreme Conditions
With IP67 and IP69K ratings, an almost unbreakable Lexan lens, and E-approval, reliability is guaranteed in all environments: freezing temperatures, mud, heavy rain, and rough terrain.

Technical Specifications ? LuminaLights Rebellion MAX 9

• LED Technology: Latest-generation LED

• Prism Lens Mirror Technology: Yes

• Beam Pattern: Wide driving beam

• DRL: Smooth Dark DRL X, white and orange, dynamic startup

• Power: 190W per auxiliary light

• Luminous Flux: 13,000 lm

• Color Temperature: 6000K

• Reference Number: 25

• Total Beam Distance: 2127 m

• 1 Lux Distance: 1067 m

• Operating Voltage: 12/24V

• Current Draw: 15.8A @ 12V / 5.33A @ 24V

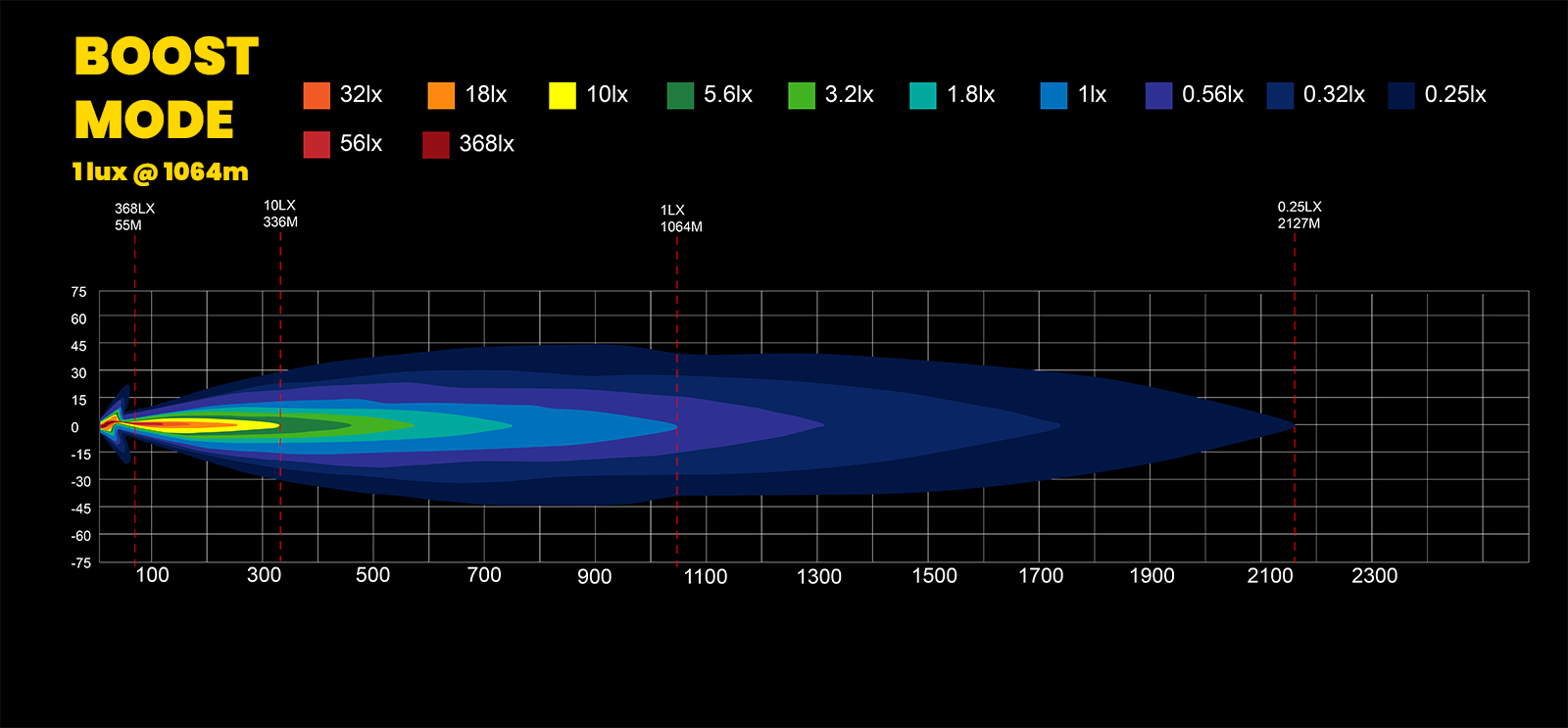

• Dual Boost Function: Yes

• Connector: DT-4

• Lens: Lexan polycarbonate

• Protection Rating: IP67 & IP69K

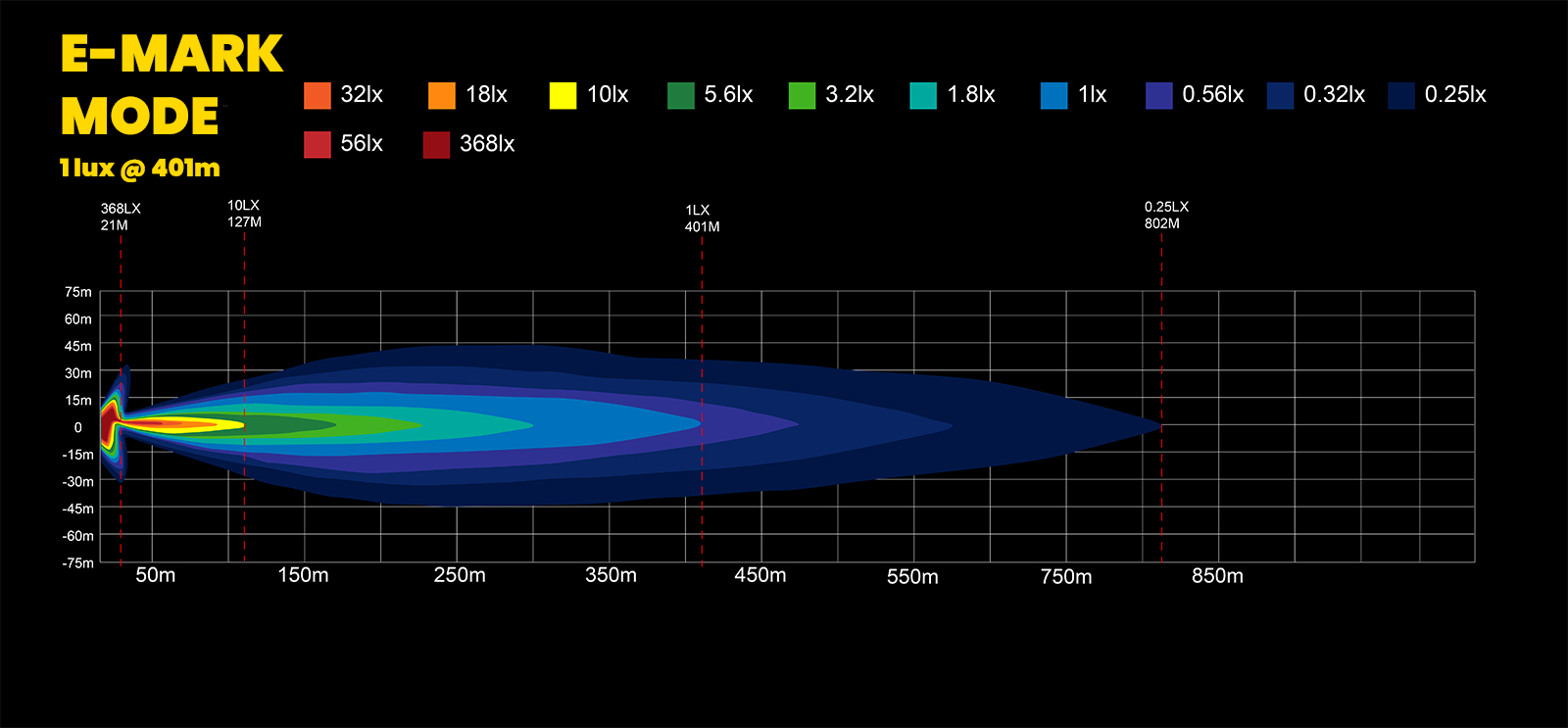

• Certifications: E-approved, CE, EMC, R10, R148, R149

• Mounting: Hole for stabilizer bar

• Warranty: 3 years

• Dimensions: 220 mm (diameter), 223 mm (height), 97 mm (depth)

Auxiliary Light Kits ? Contents

2-Piece Rebellion MAX 9 Kit Includes:

• 2 × LuminaLights Rebellion MAX 9

• 2 × Upper support brackets, flat, black

• 1 × Stainless steel auxiliary light bar (black powder coating)

• 1 × HD wiring harness

• 1 × Screw kit

3-Piece Rebellion MAX 9 Kit Includes:

• 3 × LuminaLights Rebellion MAX 9

• 3 × Upper support brackets, flat, black

• 1 × Auxiliary light bar for 3 lights

• 1 × HD wiring harness

• 1 × Screw kit

4-Piece Rebellion MAX 9 Kit Includes:

• 4 × LuminaLights Rebellion MAX 9

• 4 × Upper support brackets, flat, black

• 1 × Auxiliary light bar for 3 lights

• 2 × HD wiring harnesses

• 1 × Screw kit
