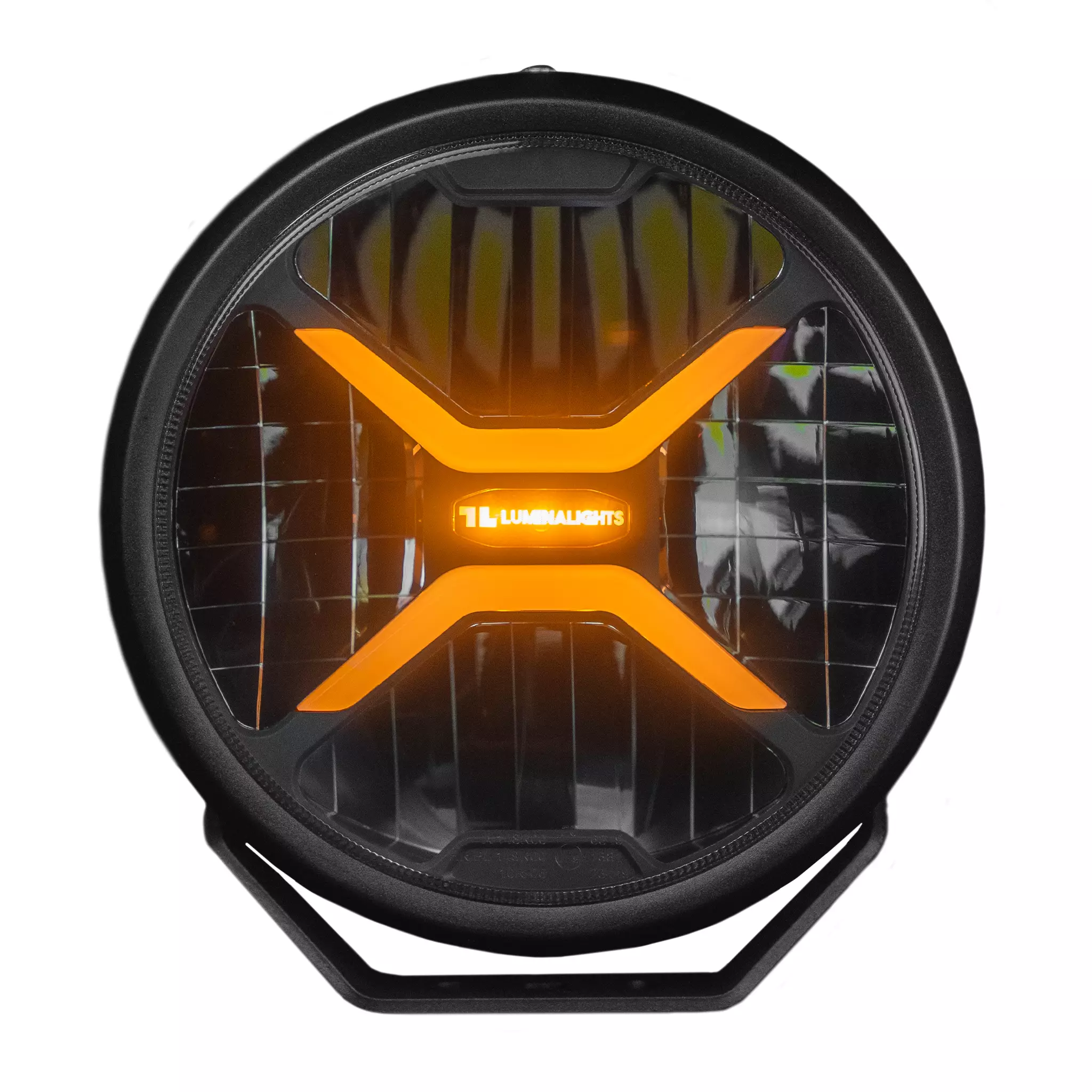

LuminaLights Rebellion+ 9 LED Auxiliary Light

Equipped with an unusually low reference number (ref.20), LuminaLights Rebellion+ 9 offers unprecedented style and power in the same durable package, with no lack of features!

Position light
The gradually illuminating parking light distinguishes itself from other lights in a subtly stylish manner. You can choose between a two-color parking light, either orange or white. The gradually illuminating parking light is a feature not found in other auxiliary lights.

Housing
The auxiliary light housing is made of aluminum, and the lens is impact-resistant polycarbonate. The weight of the light is 2100 grams. LuminaLights Rebellion+ 9 is an exceptionally slim light, allowing installation in almost any vehicle, from passenger cars to heavy-duty vehicles. The mounting bracket also provides flexibility in installation, as it does not reach all the way to the edges of the light, allowing for the installation of multiple lights side by side closer to each other. On top of LuminaLights Rebellion+ 9, there is also a place for an support rod, ensuring a secure attachment and avoiding vibration.

Dimensions
Depth 75 mm
Height with bracket 240 mm
Width 215 mm

DoubleUp Function - Auxiliary light for both off-road and road use
LuminaLights Rebellion+ 9 features two different power modes: road-legal & non-road-legal unlimited power. The power mode is determined by the connection of wires.

There are 5 different wires in the light:

Red wire connected to power = Full power (non-road-legal)
Blue wire connected to power = Road-legal power (Ref.20)
Yellow wire = orange parking light
White wire = white parking light
Black wire = ground

Beam pattern
LuminaLights Rebellion+ 9 has a hybrid light pattern that provides a good range, allowing you to see animals and other road users from a distance. The light also has a remarkably wide and round beam for an auxiliary light. So, if you're looking for an auxiliary light that allows you to see both far and into the roadside, this is the perfect light for that purpose.

LuminaLights Rebellion+ is the perfect choice for someone who wants stylish and powerful auxiliary lights at a friendly price. With these lights, you will also stand out advantageously.

2pcs complete kit includes:

• 2pcs LuminaLights Rebellion+ 9 led auxiliary light
• Licence plate bracket RST Pro 3mm
• Relay wiring harness
• 2pcs support rod, black
• Fixing screws for Licence plate bracket

3pcs complete kit includes:

• 3pcs LuminaLights Rebellion+ 9 led auxiliary light
• Licence plate bracket for 3 lights Wide RST
• Relay wiring harness
• 3pcs support rod, black
• Fixing screws for Licence plate bracket

Technical specifications:

• Nominal power: 180W
• 1 Lux @ 575m (measured at Lumise LightLab)
• Reference: 20
• Voltage: 12-24V
• Amount of leds: 4 pcs
• Dual color position light (white & amber)
• Wide beam
• Power consumption: 12.8A/12V - 6.33A/24V
• Luminous flux (theoretical): 20000 lm
• Luminous flux (measured): 6800 lm
• Color temperature: 5700K
• Size: 9''
• IP rating: IP67 & IP69K
• Polycarbonate lens
• Aluminum housing
• 4-pin Deutsch connector + counterpart
• Approvals: ECE R148, R149, R10
• Weight: 2100g
• Warranty: 36 months
