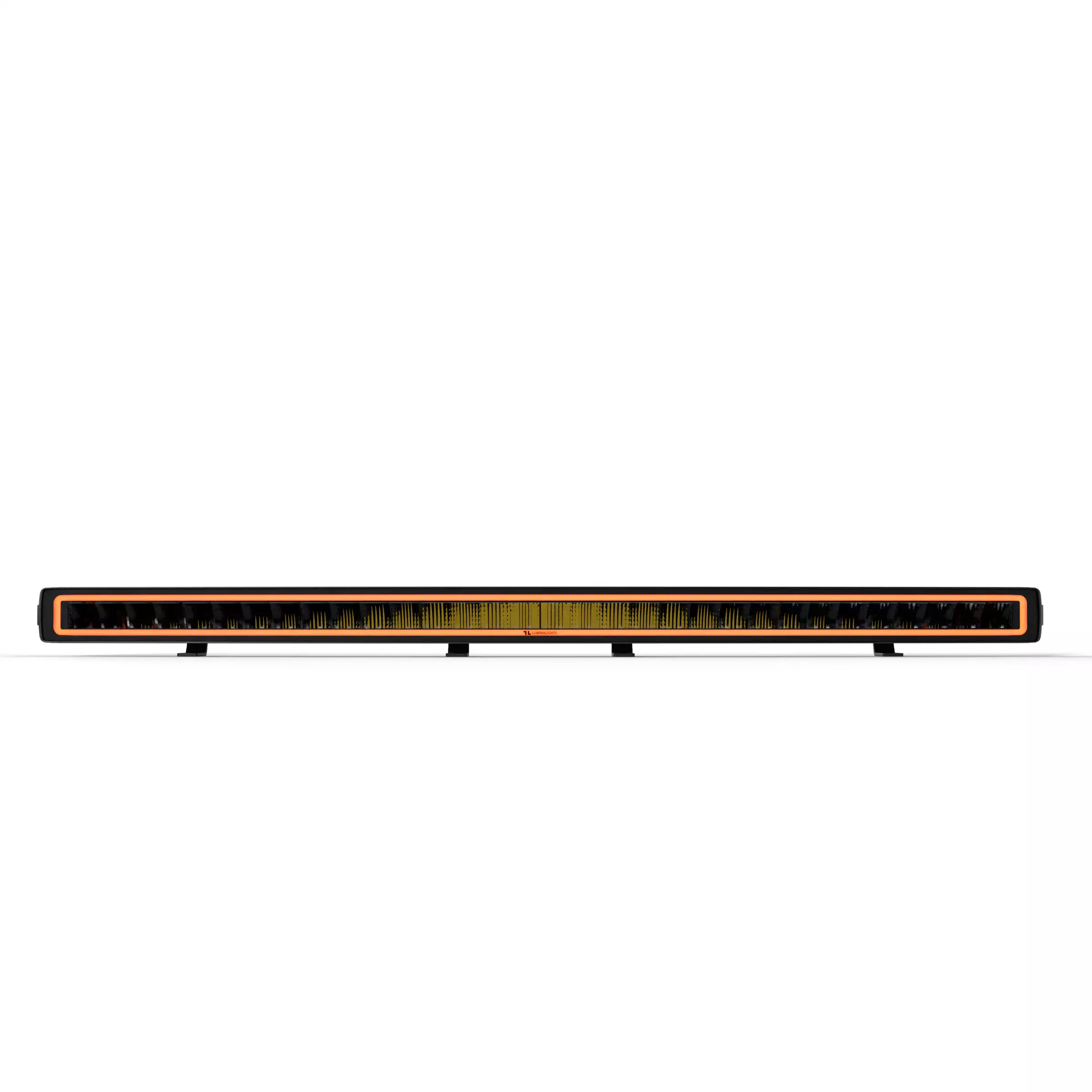

LED Light Bar LuminaLights X BAR 40"











LuminaLights POWER X BAR 40" – EXCEEDING EXPECTATIONS The LuminaLights X BAR 40 is the first auxiliary light bar equipped with a stunning, fully surrounding halo park light. Despite its modern... Read more
378,33 € / pcs
- Product Code: 8020110363
- Category: 103
- In stockThe product will be sent in 1-3 days
- Delivery costs starting from 12,99 € (Germany)
pcs
LuminaLights POWER X BAR 40" – EXCEEDING EXPECTATIONS
The LuminaLights X BAR 40 is the first auxiliary light bar equipped with a stunning, fully surrounding halo park light. Despite its modern appearance, power has not been compromised—this light bar features a road-legal mode along with an impressive 30.800-lumen BOOST function!

FEATURES:
- Combination Beam Pattern: Carefully designed to provide both width and range, making it the perfect choice for a single-light installation.
- Light Output: 320W and 30.800 lumens, with a measured range of up to 695 meters (1 lux).
- Compact Size: A slim 54mm profile enables sleek installation, regardless of the mounting location.
- Halo Park Light: A full-length halo park light with selectable white or amber illumination.
- Construction: Frameless, slightly curved housing with dark optics and a durable Lexan polycarbonate lens.
- Color Temperature: A comfortable 5700K color temperature complements many vehicles' high beams.
- Double Up BOOST: Can be used in a road-legal mode or switched to full power BOOST mode for maximum brightness.
- Price & Quality: True to the LuminaLights reputation, the X BAR offers unmatched value for money, backed by a 36-month warranty!
The LuminaLights X BAR 20 is exclusively available from Lumise!

Choose the just a light bar or a complete auxiliary light kit:
Complete Auxiliary Light Kit Includes:
- 1x LuminaLights X BAR 40 auxiliary light bar
- 1x Relay wiring harness
- 1x License plate mounting bracket for the light
- Mounting screws for the light bracket
| Feature | Specification |
|---|---|
| Product number | 8020110363 |
| Power, nominal | 320 (10W x 32 LED) |
| Power, measured | 304W |
| Power consumption | 25A @ 12V |
| Lumens, theoretical | 30.800 Lm |
| Lumens, measured | 25.600 Lm |
| Color temperature | 5700K |
| Reference | 40 |
| Beam range @ 1LUX | 695m |
| Operating voltage | 12V, 24V & 36V |
| Position light | Amber & White |
| Approvals | E-approved & CE, EMC, R10, R148, R149 |
| BOOST-feature | Yes |
| Warranty | 3 years / 36 months |
| Dimensions | Width 958mm x Height 54mm x Depth 62mm |
| Connector | DTP4 |
