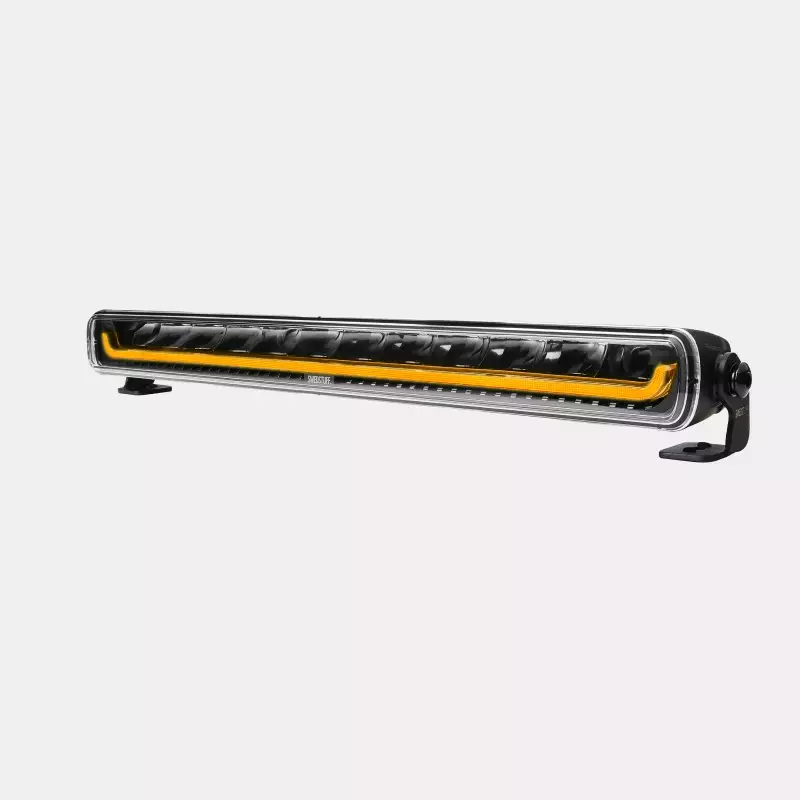

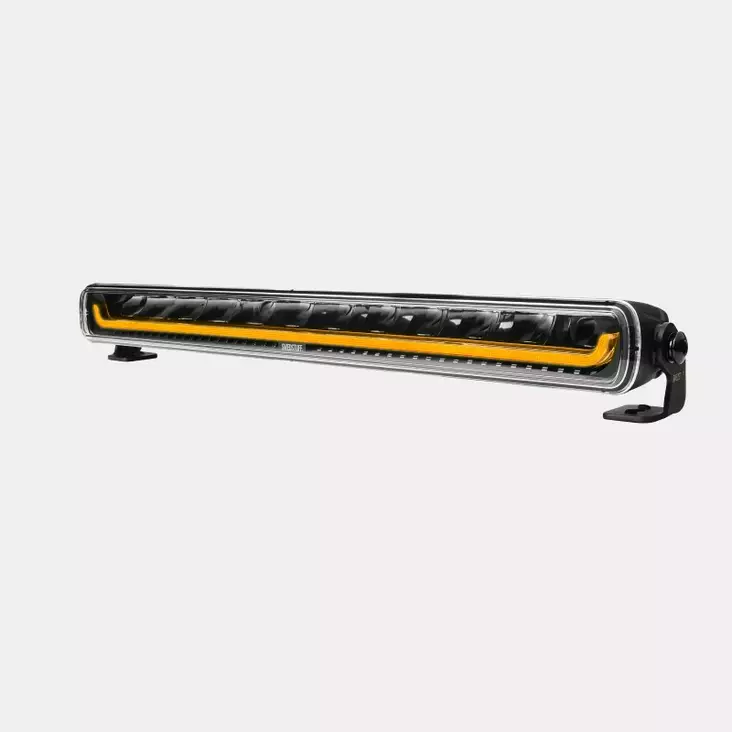

Led Bar Swedstuff 20" SR 75W

LED Bar 20” SR – Superior LED Lighting for Any Terrain

LED Bar 20” SR delivers top-tier performance, reliability, and versatility for both on-road and off-road use. With 5,100 actual lumens and a 1 lux reach of 400 meters, this LED bar ensures exceptional visibility and safety in any environment. The integrated dual position lights – white and amber – add style, functionality, and improved visibility. Perfect for off-road adventures, work vehicles, or emergency use.

Key Features

• High brightness: 5,100 actual lumens deliver clear, powerful illumination.
• Optimized beam pattern: Balanced and wide beam coverage for all applications.
• Dual position lights: White and amber LEDs enhance safety and vehicle aesthetics.
• Durable construction: Aluminum housing and impact-resistant polycarbonate lens.
• Fully protected: IP67/IP69K rated for dust and water resistance.
• Easy installation: Includes all mounting hardware and Deutsch plug.

Technical Specifications

• Voltage: 10–32 V DC
• Power consumption: 74 W (0.9 W for position lights)
• Luminous flux: 5,300 lm (theoretical) / 5,100 lm (measured)
• Range: 400 m (1 lux)
• Color temperature: 5,700 K
• Dimensions (L x H x D): 468.4 x 47 x 76 mm (61.99 mm with bracket)
• Cable length: 1,000 mm
• IP rating: IP67 / IP69K
• Reference number: 45
• Approvals: ECE R148 (R7), R149 (R112), R10
• Operating temperature: -35°C to +60°C
• Warranty: 24 months

LED Bar 20” SR – superior visibility, reliability, and performance in one sleek design.
