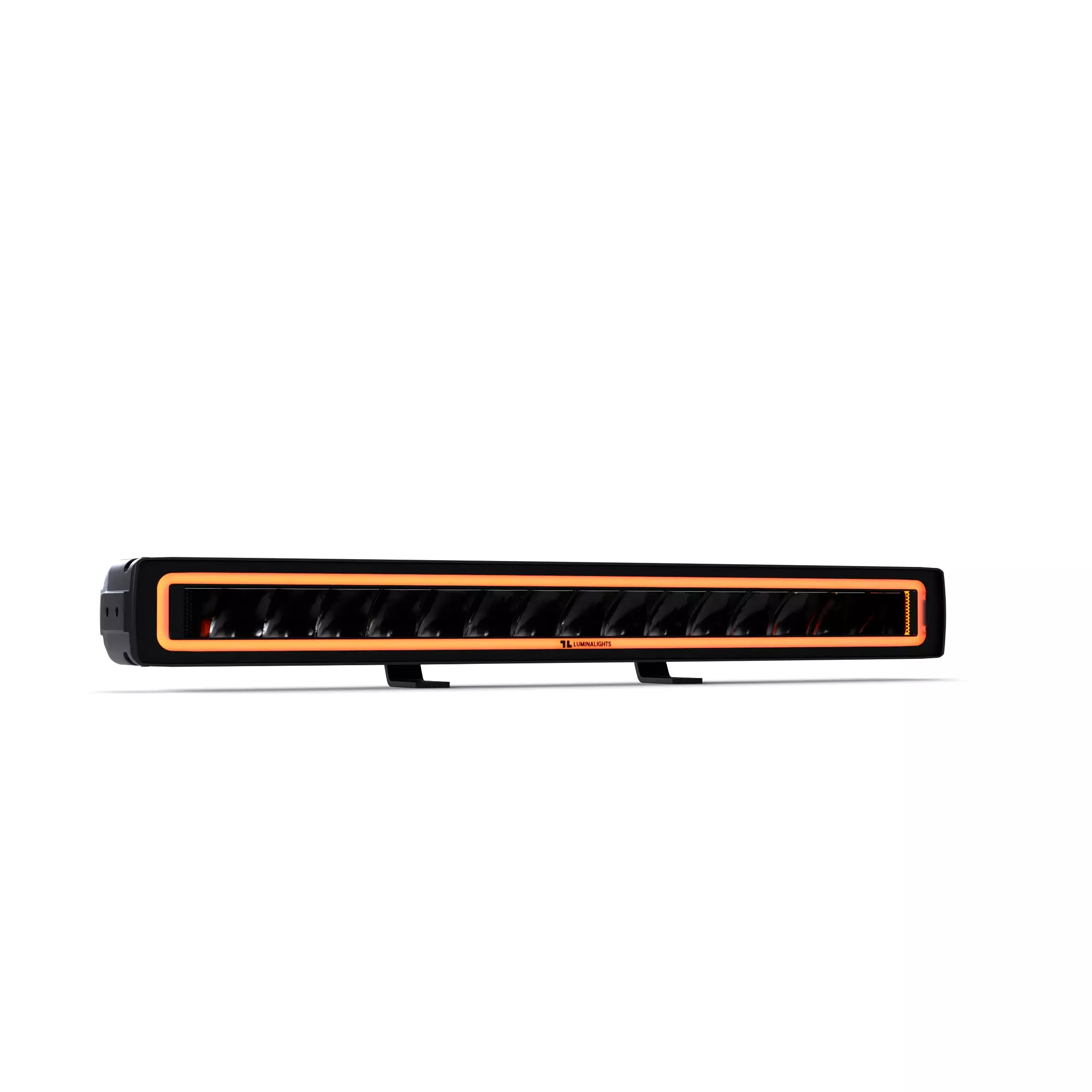

LED Bar LuminaLights X BAR 20

LED-Bar LuminaLights X BAR 20" - LED light bars - 8020110361 - 0
LED-Bar LuminaLights X BAR 20" - LED light bars - 8020110361 - 1
LED-Bar LuminaLights X BAR 20" - LED light bars - 8020110361 - 10
LED-Bar LuminaLights X BAR 20" - LED light bars - 8020110361 - 11
LED-Bar LuminaLights X BAR 20" - LED light bars - 8020110361 - 12
LED-Bar LuminaLights X BAR 20" - LED light bars - 8020110361 - 0

LuminaLights POWER X BAR 20" – EXCEEDING EXPECTATIONS The LuminaLights X BAR 20 is the first auxiliary light bar equipped with a stunning, fully surrounding halo park light. Despite its modern... Read more
217,14 € - 264,55 €
Choose Kit
217,14 € / pcs
1 pcs of light
  • In stock
    The product will be sent in 1-2 days
255,07 € / pkt
1 pcs - complete kit
  • In stock
    The product will be sent in 1-2 days
264,55 € / pkt
1 pcs - flush mounting kit
  • In stock
    The product will be sent in 1-2 days
pcs

LuminaLights POWER X BAR 20" – EXCEEDING EXPECTATIONS

The LuminaLights X BAR 20 is the first auxiliary light bar equipped with a stunning, fully surrounding halo park light. Despite its modern appearance, power has not been compromised—this light bar features a road-legal mode along with an impressive 15,400-lumen BOOST function!



FEATURES:

  • Combination Beam Pattern: Carefully designed to provide both width and range, making it the perfect choice for a single-light installation.
  • Light Output: 160W and 15,400 lumens, with a measured range of up to 596 meters (1 lux).
  • Compact Size: A slim 54mm profile enables sleek installation, regardless of the mounting location.
  • Halo Park Light: A full-length halo park light with selectable white or amber illumination.
  • Construction: Frameless, slightly curved housing with dark optics and a durable Lexan polycarbonate lens.
  • Color Temperature: A comfortable 5700K color temperature complements many vehicles' high beams.
  • Double Up BOOST: Can be used in a road-legal mode or switched to full power BOOST mode for maximum brightness.
  • Price & Quality: True to the LuminaLights reputation, the X BAR offers unmatched value for money, backed by a 36-month warranty!

The LuminaLights X BAR 20 is exclusively available from Lumise!


Choose the just a light bar or a complete auxiliary light kit:

Complete Auxiliary Light Kit Includes:

  • 1x LuminaLights X BAR 20 auxiliary light bar
  • 1x Relay wiring harness
  • 1x License plate mounting bracket for the light
  • Mounting screws for the light bracket




Feature Specification
Product number 8020110361
Power, nominal 160W (10W x 16 LED)
Power, measured 114.9W
Power consumption 8.38A @ 13.7V
Lumens, theoretical 15.400 Lm
Lumens, measured 12.800 Lm
Color temperature 5700K
Reference 30
Beam range @ 1LUX 596m
Operating voltage 12V, 24V & 36V
Position light Amber & White
Approvals E-approved & CE, EMC, R10, R148, R149
BOOST-feature Yes
Warranty 3 years / 36 months
Dimensions Width 520mm x Height 54mm x Depth 62mm
Connector DTP4
