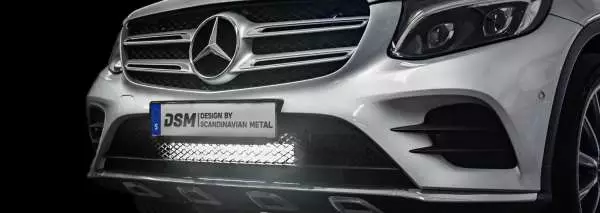

Mercedes-Benz GLC (X253) Model-Specific LED Light Bar Kit
DSM?s model-specific kits are perfect for anyone who wants a sleek and discreet installation. With specially designed, vehicle-specific brackets, you don?t have to worry about where to mount your LED light bar. Included in the package are: model-specific brackets, an LED light bar, and an installation guide.
This auxiliary light bar truly lives up to its name ? it?s a super LED bar. With an incredible 19,896 measured lumens and 288W of power, the Super Captain Dual delivers outstanding performance and functionality. The Driving Combo beam pattern makes it perfect for road use, spreading light far into the roadside and ensuring illumination exactly where it?s needed.
The reflector is engineered to maximize light output, and thanks to the Dark Lens design, the bar has a modern and clean appearance. Its frameless lens prevents snow and ice buildup, while the polycarbonate lens provides excellent protection against scratches and stone chips.
When boost mode is activated, it produces a massive 19,896 lumens and delivers 1 lux at 604 meters! It also features dual position lights, allowing you to choose between white or amber illumination. You can even combine it with our strobe relay to turn the position light into a strobe light.
Power: 288W
Reference number: 50
Voltage: 9?36V
Current draw: 15.65A / 13.7V
Beam distance: 1 lux @ 431 m (604 m in boost mode)
Reflector optics
Stylish position light ? white or amber
220 cm cable with DTP-4 connector
Theoretical light output: 25,000 lm
Measured light output: 19,896 lm
Color temperature: 6000K
Dimensions: Width 525 mm / Height 68 mm / Depth 80 mm
IP68 rated
36-month warranty
Certifications: ECE R112, ECE R10
Approved for road use
1 × Optibeam Super Captain Dual 600
Model-specific brackets for Mercedes-Benz GLC (X253)
1 × Wiring harness
Installation instructions
Note:
If the vehicle is equipped with LED headlights, a CANBUS box (such as an XBB Dongle) is required.
