DSM Tera Plus Toyota Hilux 2016-

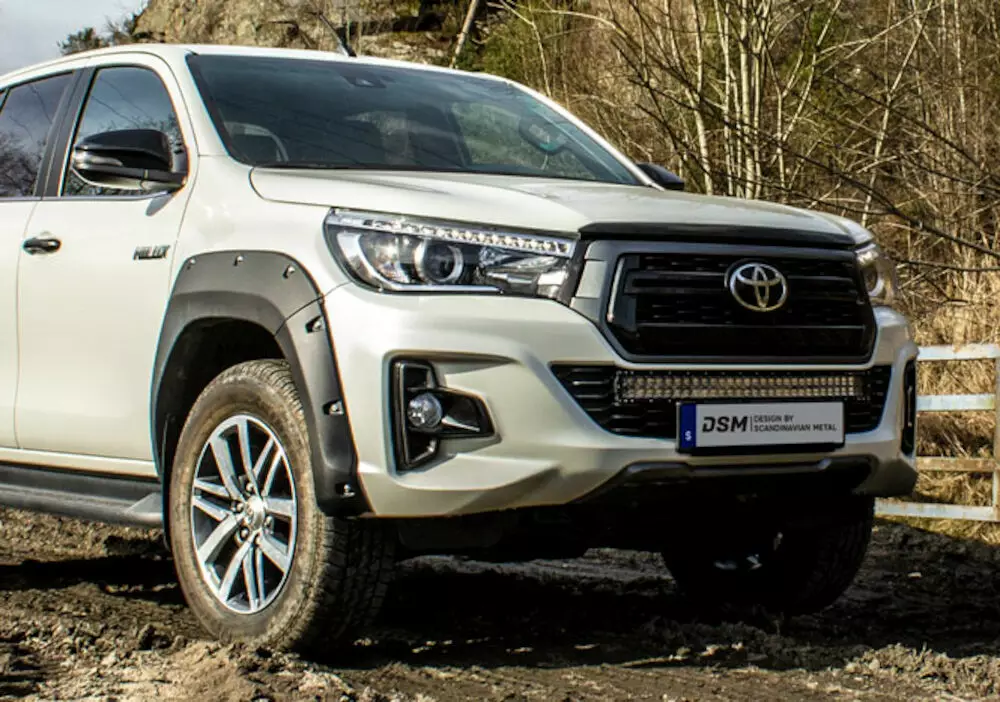

Model-Specific Auxiliary Light Kit for Toyota Hilux 2016-2020. This custom LED light bar package is designed specifically for Toyota Hilux pickup trucks, with options for either a straight or curved model! The custom installation ensures the light bar fits securely and stylishly on the vehicle. The package includes a model-specific mounting guide for installing the light bar above the license plate on Toyota Hilux 2016-2018+ vehicles. However, the installation guide does not include specific instructions for wiring the light bar, so it's recommended to verify the wiring setup before installation.

LED Light Bar Package with Straight Panel Includes:

• LED Light Bar Panel: Optibeam Savage 30
• Mounting Kit: DSM mounting kit for Toyota Hilux 2016+

LED Light Bar Package with Curved Panel Includes:

• LED Light Bar Panel: X-Vision Genesis 800 Curved
• Mounting Kit: DSM mounting kit for Toyota Hilux 2016+

Optibeam Savage 30 Technical Specifications:

• Range: Approved for road use, 342m @ 1 Lux (Double-Up 588m @ 1 Lux)
• Voltage: 9-36V
• Power Consumption: 10.55A @ 13.7V
• Theoretical Light Output: 12000 lm
• Measured Light Output: 10065 lm
• Color Temperature: 5700K
• LED Lifespan: Over 30,000 hours
• Dimensions: Width 791mm, Depth 87mm, Height 81mm (109mm including mounts)
• Weight: 3400g
• Power Cable: 220cm with 4-pin DTP connector
• Durable Polycarbonate Lens
• Aluminum Housing
• Approved for Road Use
• Reference Number: 40 (Double-Up mode not approved for road use)
• ECE R112, ECE R10
• Warranty: 36 months

X-Vision Genesis 800 Technical Specifications:

• Reference Number: 40
• Voltage: 9-30V
• Power: 180W (12 x 15W)
• Light Output: 5400 lm in road-approved mode
• Double-Up Mode: 10800 lm (not approved for road use)
• Color Temperature: 4500K
• Aluminum Housing
• Impact-Resistant Polycarbonate Lens
• Includes Two Sets of Mounts: End mounts and width-adjustable bottom mounts
• 2-pin DTP Connector
• Includes Upper Supports
• Dimensions: 804mm x 85mm x 80mm
• Weight: 3.7 kg
• Warranty: 60 months
• IP68
• Approved for Road Use (E-approval)

Note: The package includes a model-specific mounting guide for installing the light bar above the license plate on Toyota Hilux 2016-2018+ vehicles. The installation guide does not include specific instructions for wiring the light bar, so it's recommended to verify the wiring setup before installation.
