DSM Premium Plus KIA EV6 2022-

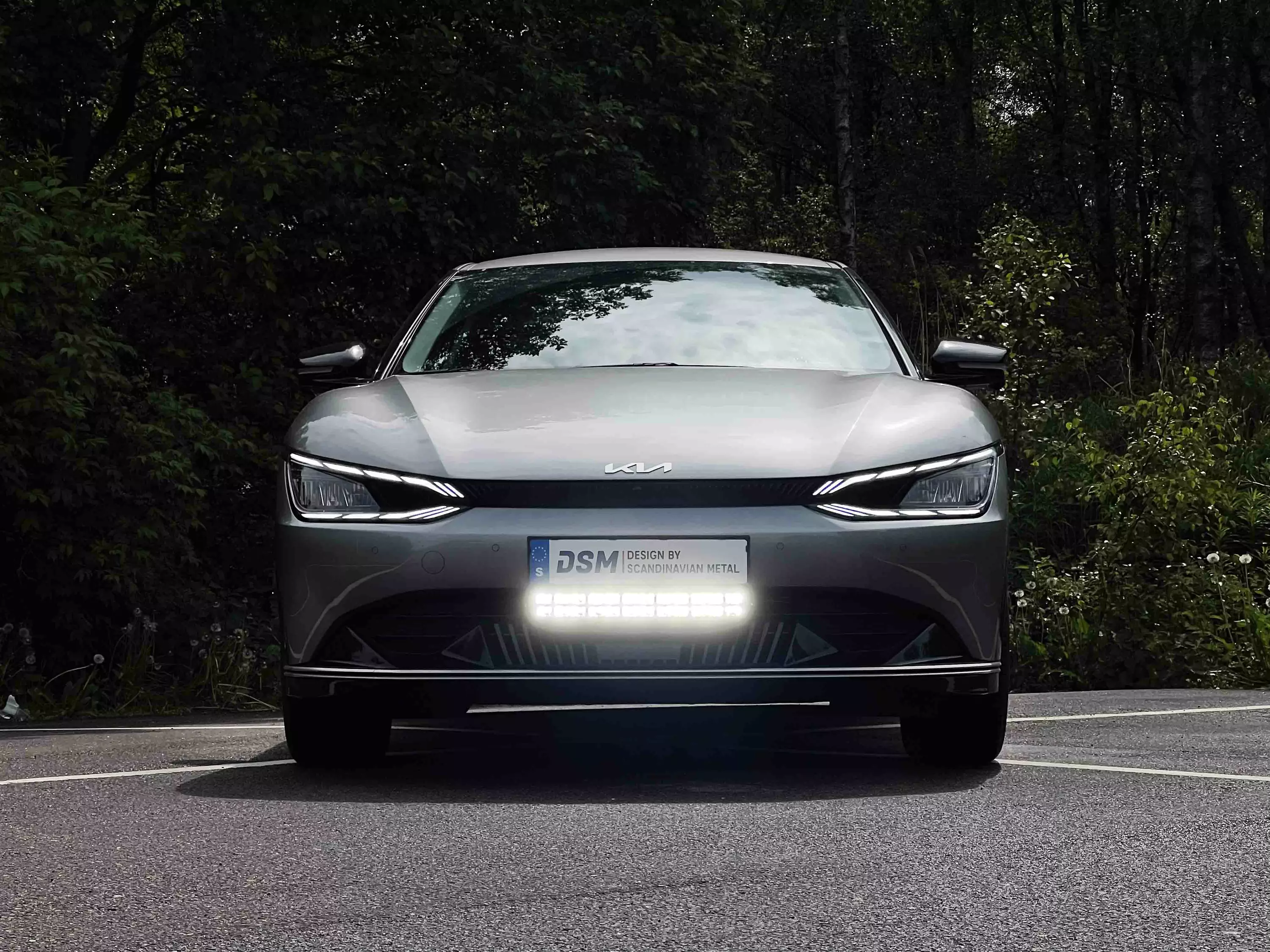

Model-Specific Auxiliary Light Kit With model-specific installation, the auxiliary light kit ensures that the light fits securely and stylishly onto the car, making it more difficult for additional lights to be stolen. The kit includes a model-specific mounting guide for Kia EV6 2022+ and newer models, to be placed below the license plate behind the grille. The installation guide does not provide specific instructions for connecting the auxiliary light wiring, so it is recommended to confirm before installation. For vehicles equipped with LED and xenon lights, we recommend using the XBB OBD dongle and PowerUnit, which can be found HERE.

LED Auxiliary Light Package 1 includes:

• LED auxiliary light panel Optibeam Super Captain Dual 600
• DSM mounting kit for Kia EV6 2022+
• DTP-2 relay wiring kit

LED Auxiliary Light Package 2 includes:

• LED auxiliary light panel Optibeam Super Captain Dual 600 RAGE
• DSM mounting kit for Kia EV6 2022+
• DTP-2 relay wiring kit

Technical specifications:

• Nominal Power: 288W
• Reference: 50
• Operating voltage: 9-36V
• Power consumption: 15,65A @ 13,7V
• Beam length: 1lux @ 604m (with double up -functions) / 1lux @ 431m (without double up -function)
• Dual-color positiong light (white & amber)
• Cable length 220 cm (with 2-pin DTP connector)
• Luminous flux (theoretical): 25 000 lm
• Luminous flux (measured): 19896
• Color temperature: 5000K
• Width: 525 mm
• Height: 68 mm
• Depth: 80 mm
• IP68
• Warranty 36 months
• Approvals: ECE R112, ECE R10
• Approved for road traffic (without double up -function)

Optibeam Super Captain Dual 600 RAGE Technical Specifications:

• Operating voltage: 9-36V
• Power consumption: 30A @ 13.7V
• 24 X LEDs
• Luminous flux (measured): 27000lm
• Color temperature: 6000K
• Range: 1lux @ 1300m
• Cable length: 220cm
• Width: 535 mm
• Height: 68 mm
• Depth: 80 mm

NOTE: The auxiliary light kit includes a model-specific mounting guide for Kia EV6 2022+ and newer models, to be placed below the license plate behind the grille. The installation guide does not provide specific instructions for connecting the auxiliary light wiring, so it is recommended to confirm before installation. For vehicles equipped with LED and xenon lights, we recommend using the XBB OBD dongle and PowerUnit, which can be found HERE.
